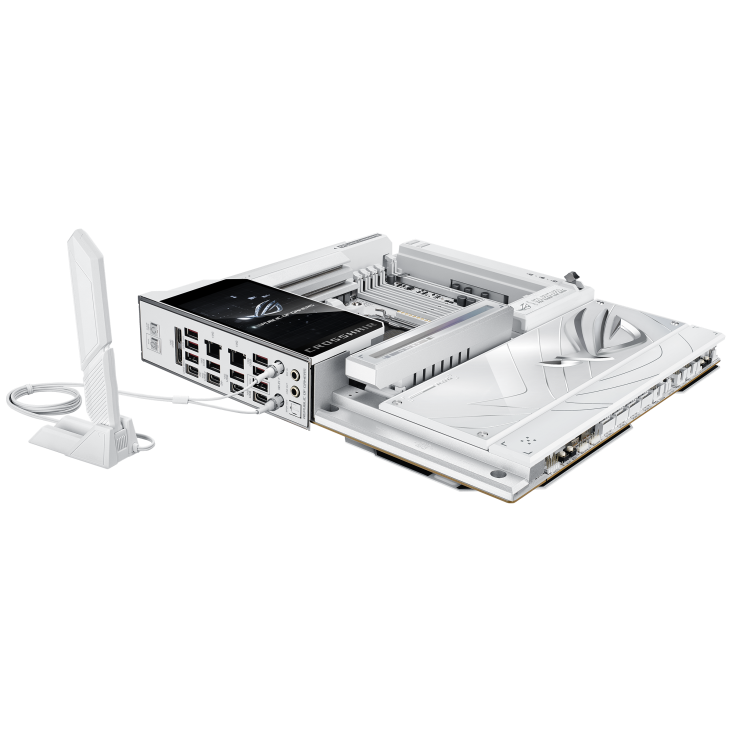

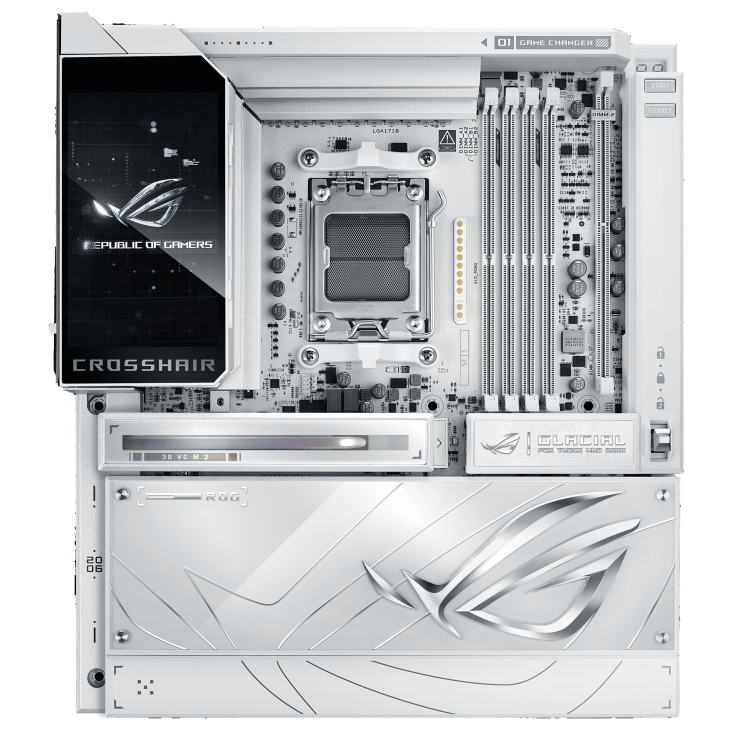

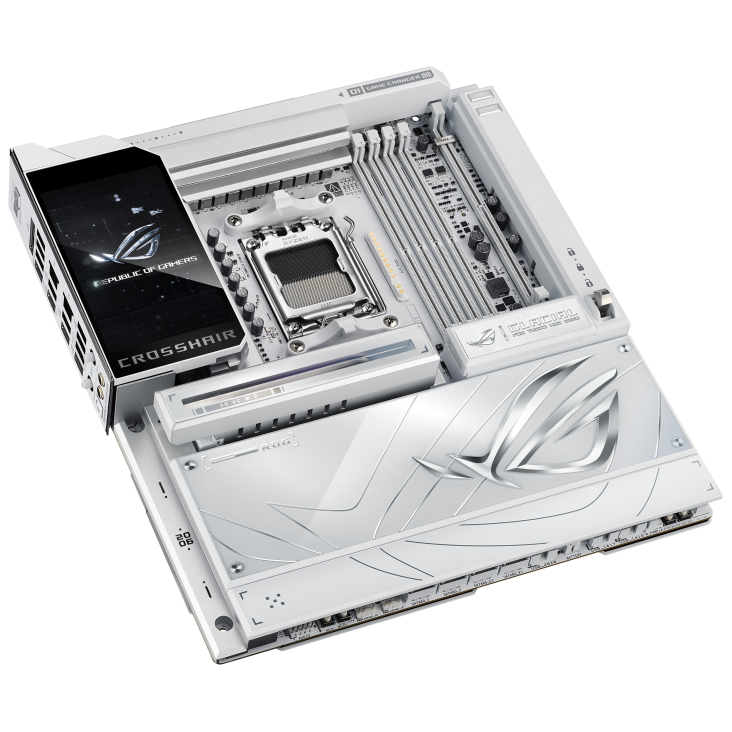

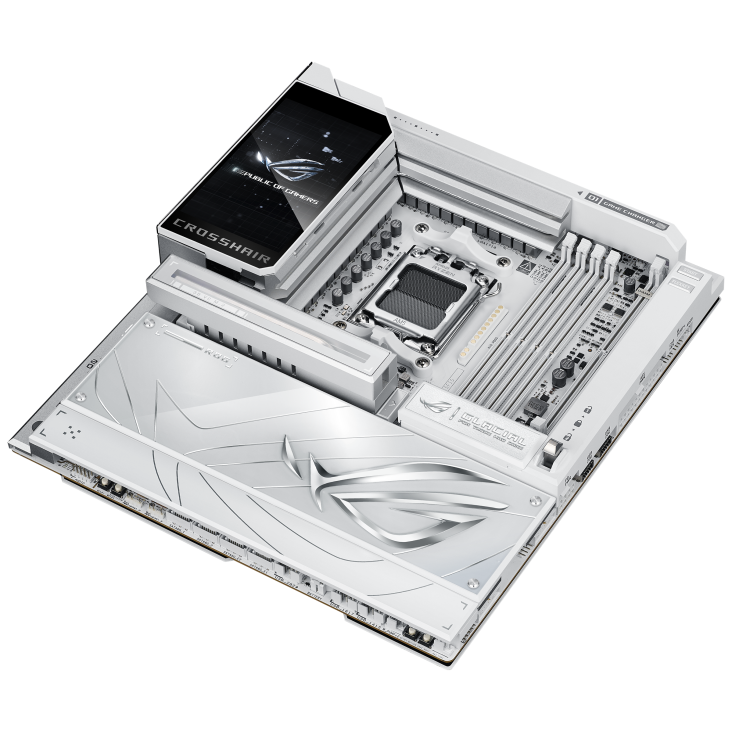

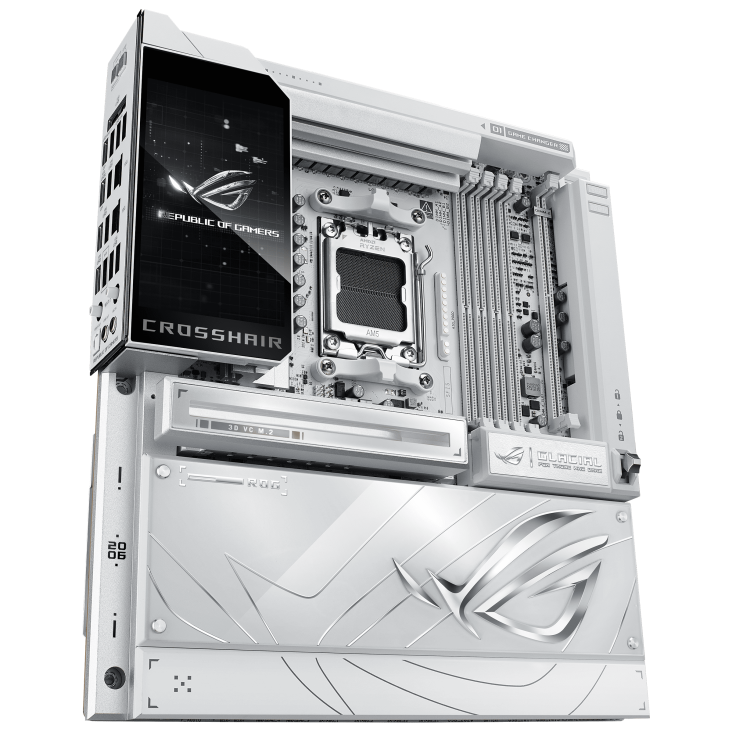

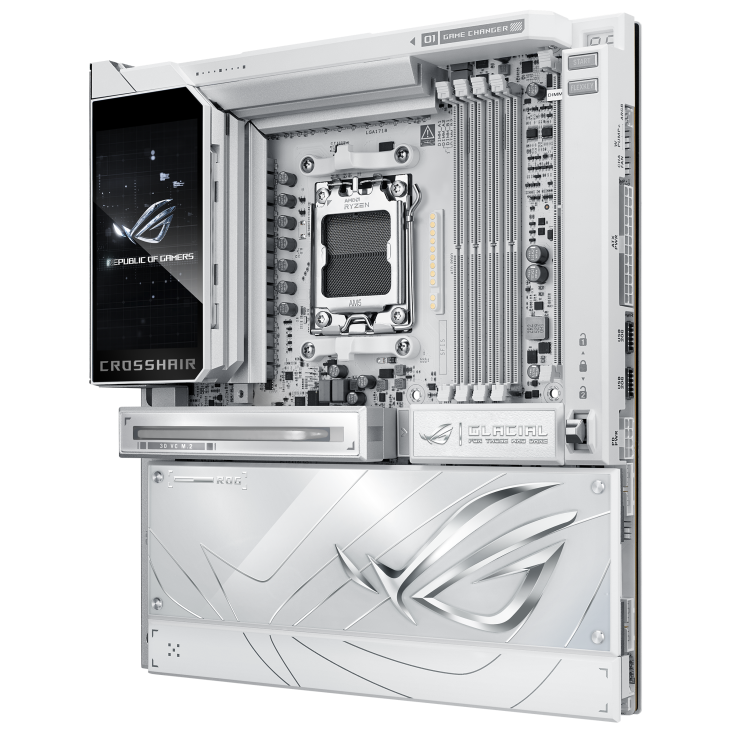

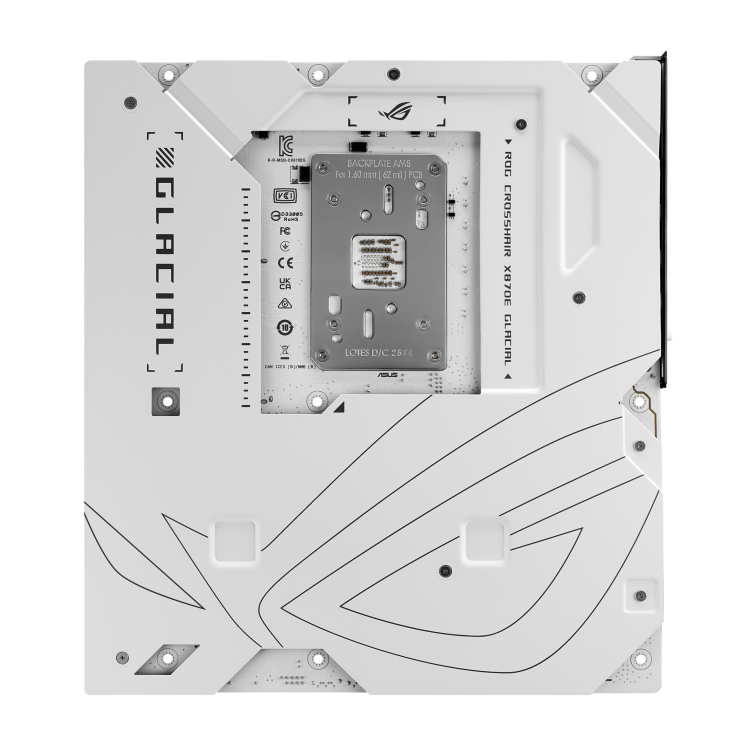

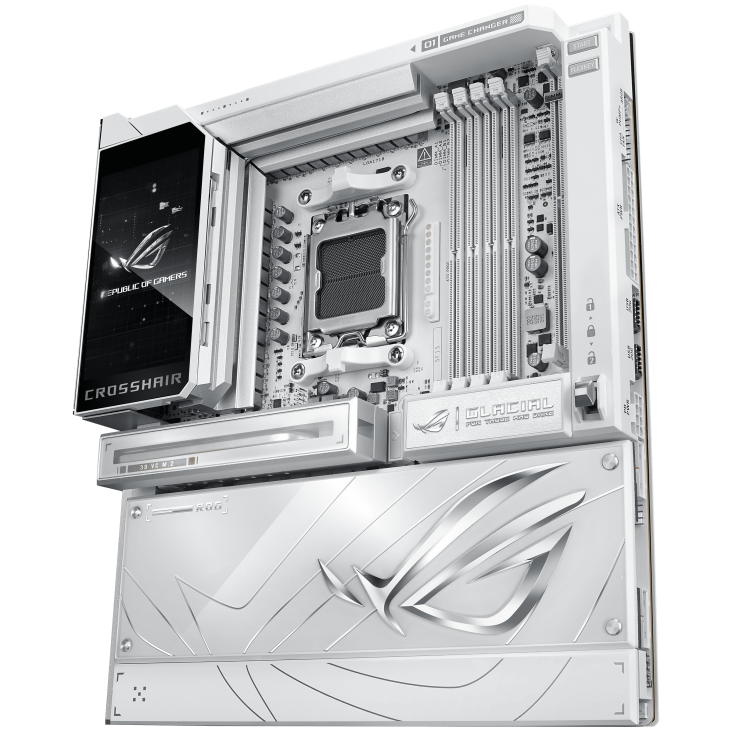

ASUS ROG Crosshair X870E Glacial
Extreme high-end motherboard for AMD processors from ASUS
The ROG X870E Glacial is a flagship motherboard engineered for uncompromising performance and sophisticated AI. It boasts a robust 24+2+2 power stage design, Dynamic OC Switcher, and Core Flex for next-generation overclocking control. Meanwhile, advanced memory tuning is unlocked through server-grade DRAM enhancement and NitroPath DRAM technology, and storage scales with support for up to seven M.2 drives. Top-tier connectivity includes two 10G Ethernet ports, two USB4 ports, and two USB 20Gbps Type-C front-panel connectors. This motherboard also features a 3D VC M.2 heatsink and a 5-inch LCD display, along with AI Cache Boost and AI Advisor for smarter, more intuitive system tuning.
| SKU ID |
SKU-114
|
|---|---|
| Product Type | Motherboard |
| Price (incl. tax) | NPR0.00 |
| Availability | Out of stock |
| Launch | 2026 |
| Segment | Desktop |
| Brand | ASUS |
| Series | ROG |
| Model | Crosshair X870E Glacial |
| Processor Socket | AM5 |
| Chipset | AMD X870E |
| Compatible Processors | AMD Ryzen 7000 & 9000 series |
| Power Design |
CPU Power: 24-phase SOC Power: 2-phase Misc Power: 2-phase |
| Memory Technology | DDR5 |
| Maximum Memory Capacity | 256 GB DDR5 |
| Maximum Memory Frequency |
Supports 8600+ MT/s (OC) / 8200+ MT/s (OC) with Ryzen 9000 Series Processors Supports 8000+ MT/s (OC) / 8000+ MT/s (OC) with Ryzen 7000 Series Processors |
| Memory Slots Available | 4 x DIMM |
| Dual Channel Memory | Yes |
| Memory Overclocking | Yes, Extended Profiles for Overclocking |
| Onboard Graphics |
2 x USB4 (40Gbps) ports support USB Type-C display Supports maximum 4K@60Hz as specified in DisplayPort 1.4a |
| Expansion Slots | 2 × PCI-Express Gen 5 x16 slot |
| Storage |
4 × M.2 (PCIe Gen 5 x4) 2 × M.2 (PCIe Gen 4 x4) 1 × M.2 (PCIe Gen 4 x2) 4 × SATA 6 Gb/s |
| RAID Configuration | RAID 0,1,5,10 |
| Ethernet LAN |
2 × Realtek 10 Gbps Ethernet ASUS LANGuard |
| Wireless and Bluetooth |
1 × MediaTek MT7927 Wi-Fi 7 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band Supports Wi-Fi 7 320MHz bandwidth Bluetooth v5.4 (support LE Audio) |
| Audio |
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082 - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking - High quality 120 dB SNR stereo playback output and 110 dB SNR recording input - Supports up to 32-Bit/384 kHz playback on front panel Audio Features - SupremeFX Shielding Technology - ESS ES9219 QUAD DAC - LED-illuminated audio jacks - Rear optical S/PDIF out port- Premium audio capacitors |
| USB Ports |
Front USB 1 x USB 20Gbps connector (Type-C with upto 60W PD/QC4+) 1 x USB 20Gbps connector (Type-C) Rear USB 2 x USB4 (40Gbps) ports (2 x USB Type-C) 12 x USB 10Gbps ports (8 x Type-A + 4 x USB Type-C) |
| Back Panel |

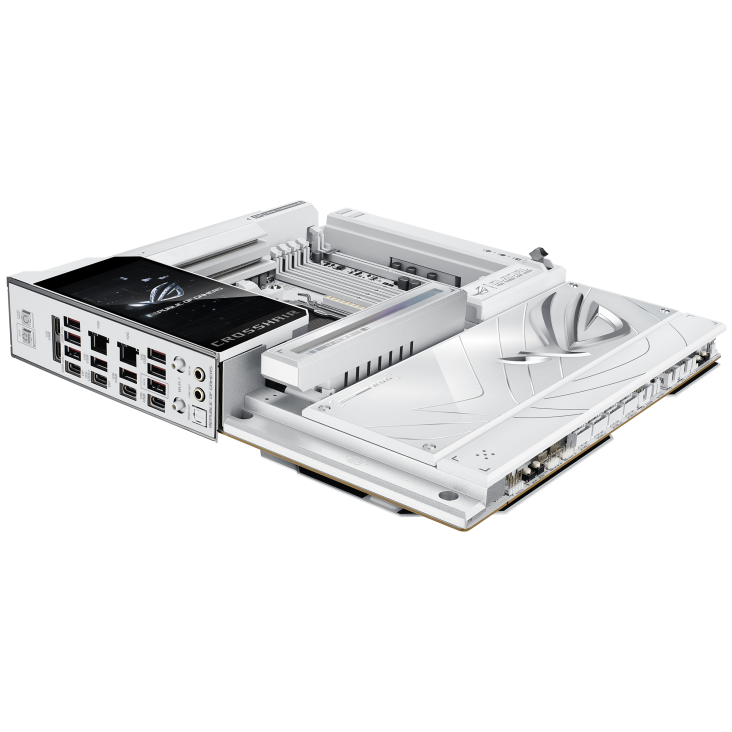

BIOS Flashback button CMOS clear button 2 × 10 Gbps Ethernet 2 × 40 Gbps USB4 Type-C 4 × USB 3.2 Gen 2 10 Gbps (Type-C) 8 × USB 3.2 Gen 2 10 Gbps (Type-A) 2 × Wi-Fi antenna connectors 2 × Audio jacks 1 × Optical S/PDIF Out port |
| Form Factor |
E-ATX Form Factor 12 inch x 10.9 inch (30.5 cm x 27.7 cm) |
| Special Features |
M.2 Q-Latch M.2 Q-Release M.2 Q-Slide PCIe Q-Release Switch Q-Antenna |
| Warranty | 1 Year |
