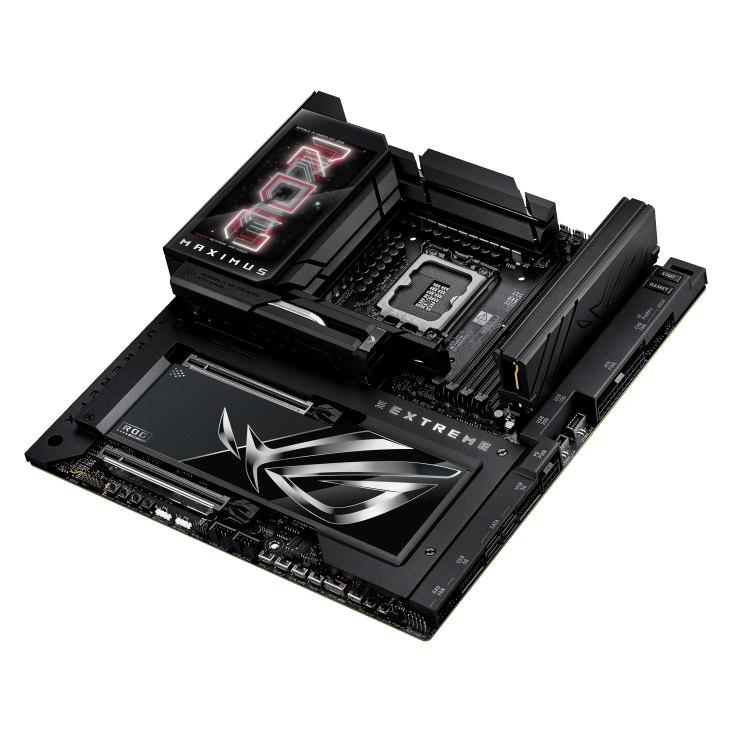

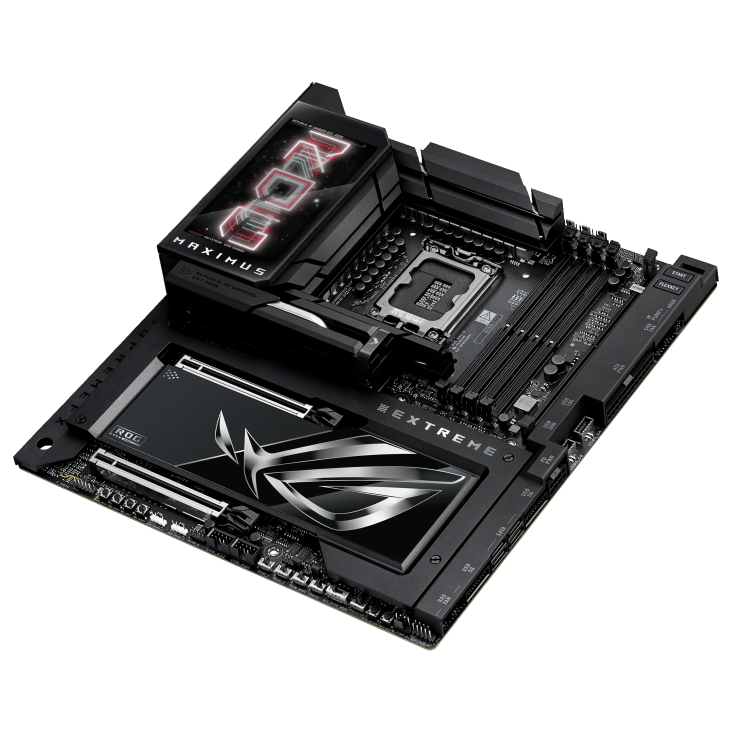

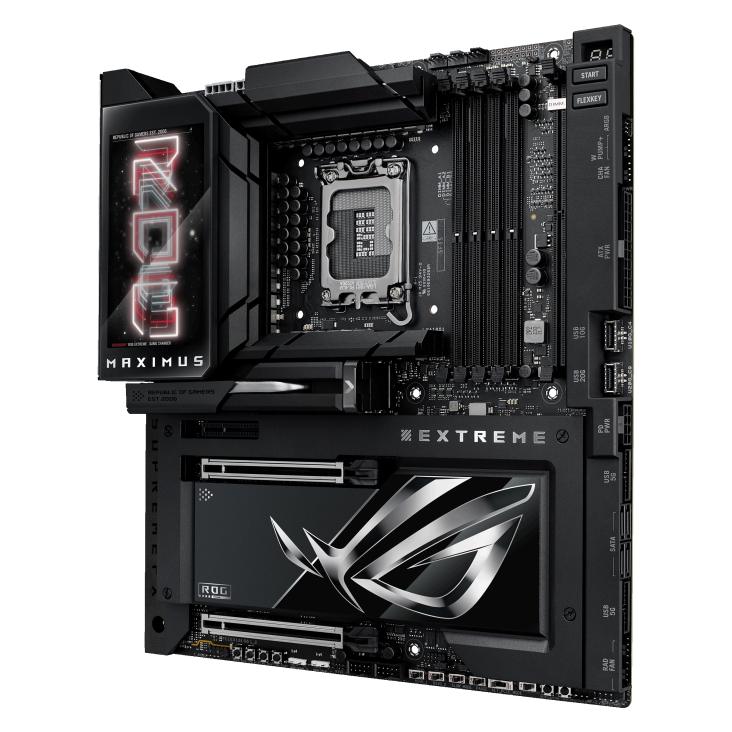

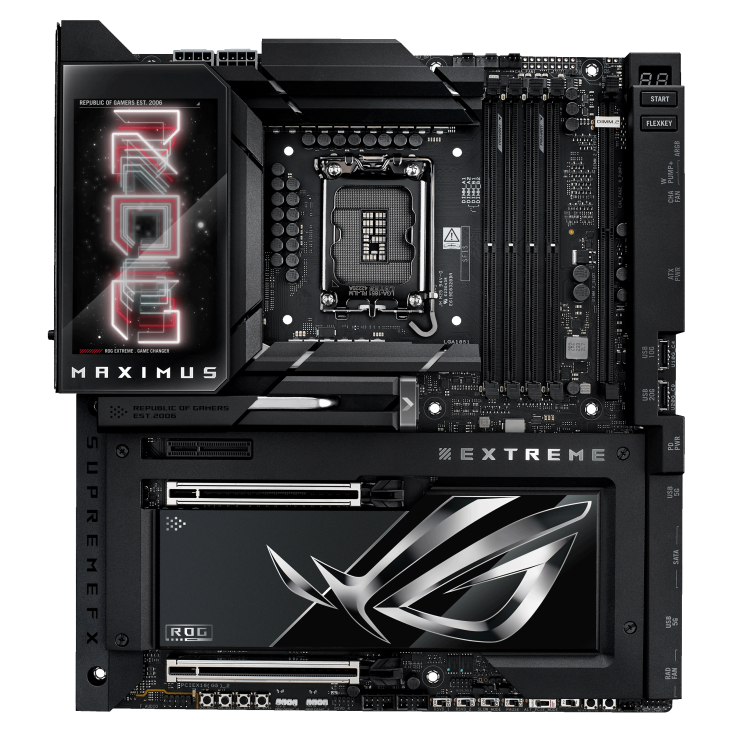

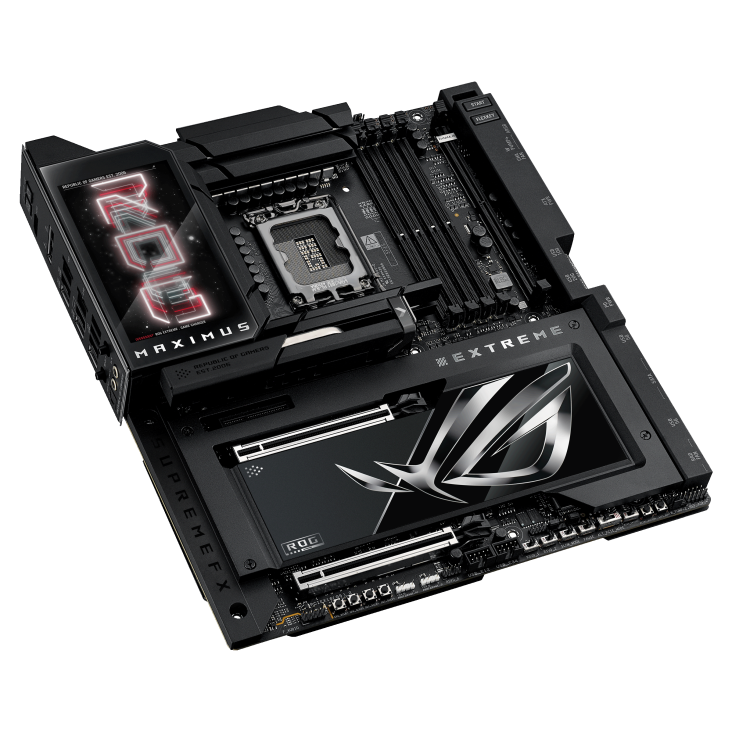

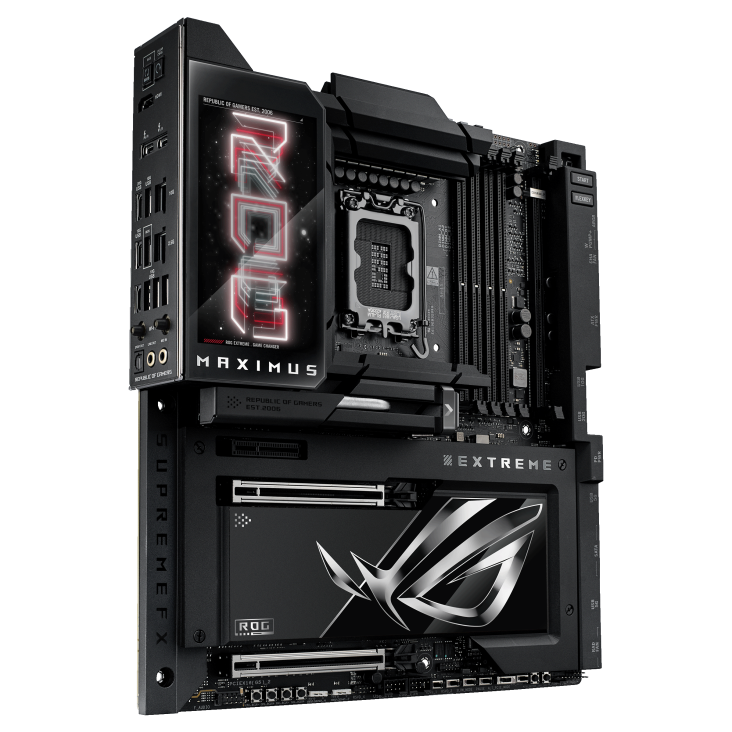

ASUS ROG Maximus Z890 Extreme
Free
Out of Stock
Highlights
Read Full Specs →
USB Ports
Front USB
1 x USB 20 Gbps (Type-C with upto 60W PD/QC4+)
1 x USB 10 Gbps (Type-C)
Rear USB
2 x Thunderbolt 5 (Type-C)
1 x USB 20 Gbps (Type-C)
2 x USB 10 Gbps (Type-C)
5 x USB 10 Gbps (Type-A)
1 x USB 20 Gbps (Type-C with upto 60W PD/QC4+)
1 x USB 10 Gbps (Type-C)
Rear USB
2 x Thunderbolt 5 (Type-C)
1 x USB 20 Gbps (Type-C)
2 x USB 10 Gbps (Type-C)
5 x USB 10 Gbps (Type-A)
Launch
2024
Segment
Desktop
Genuine Product
Official Warranty
Global Brand
COD Available
High-end motherboard for Intel processors from ASUS
The ROG Maximus Z890 Extreme is the ultimate expression of cutting-edge motherboard technology and performance. Discover the upper limits of Intel® Core™ Ultra Series 2 processors, DDR5 modules, PCIe® 5.0 graphics cards, NVMe storage, USB connectivity, Thunderbolt™ functionality and more – all wrapped up in a sleek package featuring a full-color 5-inch long LCD screen that can deliver vibrant imagery or live system stats to suit your personal tastes.
| SKU ID |
SKU-116
|
|---|---|
| Product Type | Motherboard |
| Price (incl. tax) | NPR0.00 |
| Availability | Out of stock |
| Launch | 2024 |
| Segment | Desktop |
| Brand | ASUS |
| Series | ROG |
| Model | Maximus Z890 Extreme |
| Processor Socket | LGA 1851 |
| Chipset | Intel Z890 |
| Compatible Processors | Intel Core Ultra Processors (Series 2) |
| Power Design |
CPU Power: 22-phase iGPU Power: 1-phase VCCSA Power: 2-phase VNNAON Power: 2-phase |
| Memory Technology | DDR5 |
| Maximum Memory Capacity | 256 GB DDR5 |
| Maximum Memory Frequency | Support 9200+MT/s (OC) |
| Memory Slots Available | 4 x DIMM |
| Dual Channel Memory | Yes |
| Memory Overclocking | Yes, Xtreme Memory Profile |
| Onboard Graphics |
1 x HDMI 2.1 port (supports max. 8K@60Hz with DSC) 2 x Thunderbolt 5 (USB Type-C) (supports up to 4K@60Hz / 8K@60Hz) |
| Expansion Slots |
2 x PCI-Express 5.0 x16 slots 1 x PCI-Express 4.0 x4 slot |
| Storage |
6 x M.2 slots 4 x SATA 6 Gbps |
| RAID Configuration | RAID 0,1,5,10 |
| Ethernet LAN |
1 x Marvell AQtion 10 Gbps LAN 1 x Intel 2.5 Gbps LAN ASUS LANGuard |
| Wireless and Bluetooth |
Intel Wi-Fi 7 2x2 Wi-Fi 7 (802.11be) Supports 2.4GHz / 5GHz / 6GHz upto 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Bluetooth 5.4 |
| Audio |
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082 High quality 120 dB SNR stereo playback output and 110 dB SNR recording input Supports up to 32-Bit/384 kHz playback on front panel SupremeFX Shielding Technology ESS ES9219 QUAD DAC LED-illuminated audio jacks Rear optical S/PDIF out port Premium audio capacitors |
| USB Ports |
Front USB 1 x USB 20 Gbps (Type-C with upto 60W PD/QC4+) 1 x USB 10 Gbps (Type-C) Rear USB 2 x Thunderbolt 5 (Type-C) 1 x USB 20 Gbps (Type-C) 2 x USB 10 Gbps (Type-C) 5 x USB 10 Gbps (Type-A) |
| Back Panel |
BIOS FlashBack button Clear CMOS button 2 x Thunderbolt 5 USB Type-C ports 1 x USB 20Gbps port (1 x USB Type-C) 7 x USB 10Gbps ports (5 x Type-A + 2 x USB Type-C) 1 x HDMI port 1 x Wi-Fi Module 1 x Intel 2.5Gb Ethernet port 1 x Marvell AQtion 10Gb Ethernet port 2 x LED-illuminated audio jacks 1 x Optical S/PDIF out port |
| Form Factor |
E-ATX Form Factor 12 inch x 10.9 inch (30.5 cm x 27.7 cm) |
| Special Features |
Extreme OC Kit Extreme Engine Digi+ ASUS Q-Design ASUS Thermal Solution ASUS EZ DIY Aura Sync Dual BIOS Full Color 5" LCD Display ROG M.2 PowerBoost Front Panel USB 20Gbps with Quick Charge 4+ Support |
| Warranty | 1 Year |
