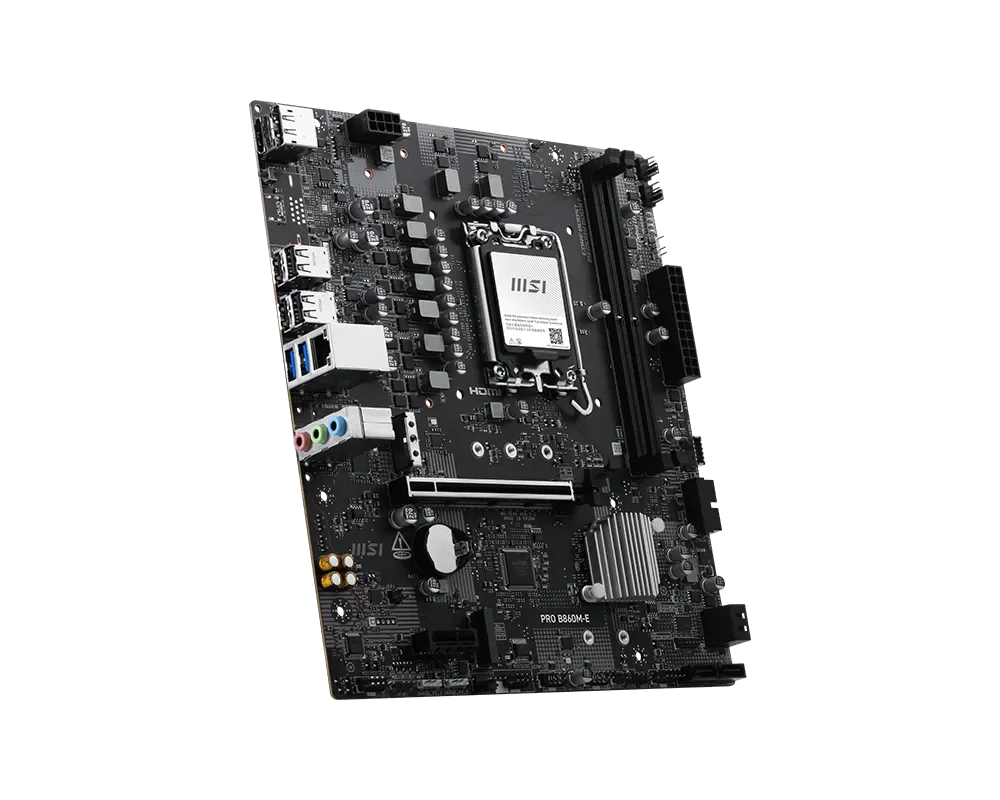

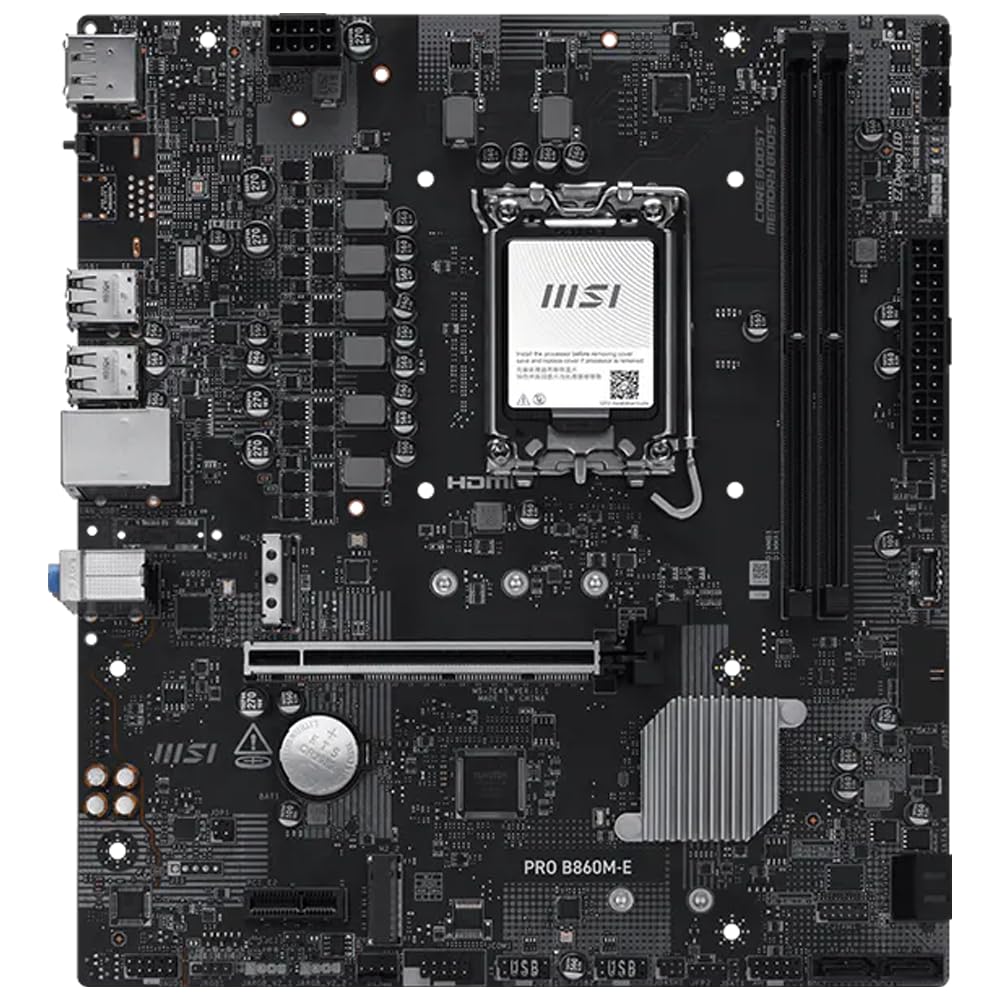

MSI PRO B860M-E Motherboard – Intel B860, DDR5, PCIe 5.0, 5G LAN (mATX)
MSI
The MSI PRO B860M-E is a clean, silver-themed Micro-ATX board for anyone building a modern Intel Core Ultra (Series 2) PC without paying for features they will never use. It uses the Intel B860 chipset with the LGA 1851 socket and supports DDR5 memory up to 128GB across two slots, with overclocked speeds up to 9066+ MT/s and Intel XMP 3.0.
Storage is well covered: one M.2 slot runs at PCIe 5.0 x4 straight from the CPU, a second runs at PCIe 4.0 x4, and there are four SATA ports for extra drives. The graphics slot is PCIe 5.0 x16, ready for current and future GPUs.
Everyday connectivity is strong for the class — Realtek 8126 5Gbps LAN (far beyond standard gigabit), plus a front-panel USB 10Gbps Type-C header for modern cases. HDMI 2.1 and DisplayPort 1.4 let you use the CPU's integrated graphics while you wait for a GPU. Note that this model has no onboard Wi-Fi/Bluetooth, so choose the Wi-Fi version or add an adapter if you need wireless.
Great for office PCs, study rigs, content-creation starters and compact gaming builds. Includes MSI EZ DIY conveniences such as EZ PCIe Clip II and EZ Debug LEDs.
📍 Visit Us: Absolute Computer & Mobile, Megha Market, Sahidchowk, Narayangarh, Chitwan
📞 Call/WhatsApp: 985-5063618
📧 Email: absolutecomputerngt@gmail.com
| SKU ID |
SKU-20699
|
|---|---|
| Product Type | Motherboard |
| Price (incl. tax) | NPR 21,999 |
| Availability | In stock (5) |
| Brand | MSI |
| Model | PRO B860M-E |
| Chipset | Intel B860 |
| CPU Socket | LGA 1851 |
| Processor Support | Intel Core Ultra Processors (Series 2) |
| Form Factor | Micro-ATX (220 × 243.84 mm) |
| Memory Type | DDR5 UDIMM (non-ECC, unbuffered) |
| Memory Slots | 2 (dual channel) |
| Maximum Memory Capacity | 128GB |
| Memory Speed | Up to 9066+ MT/s (OC); 6400–4800 MT/s (JEDEC); Intel XMP 3.0; CUDIMM supported |
| M.2 Slots | 2 |
| M.2 Interface | M.2_1: PCIe 5.0 x4 (CPU); M.2_2: PCIe 4.0 x4 (chipset) |
| PCIe x16 Slot | 1× PCIe 5.0 x16 (CPU) |
| PCIe Expansion Slots | 1× PCIe 4.0 x1 |
| SATA Ports | 4× SATA 6Gb/s |
| LAN | Realtek 8126 5Gbps LAN |
| Wi-Fi | N/A (no onboard wireless) |
| Bluetooth | N/A |
| USB Type-C | 1× USB 10Gbps Type-C (front-panel header) |

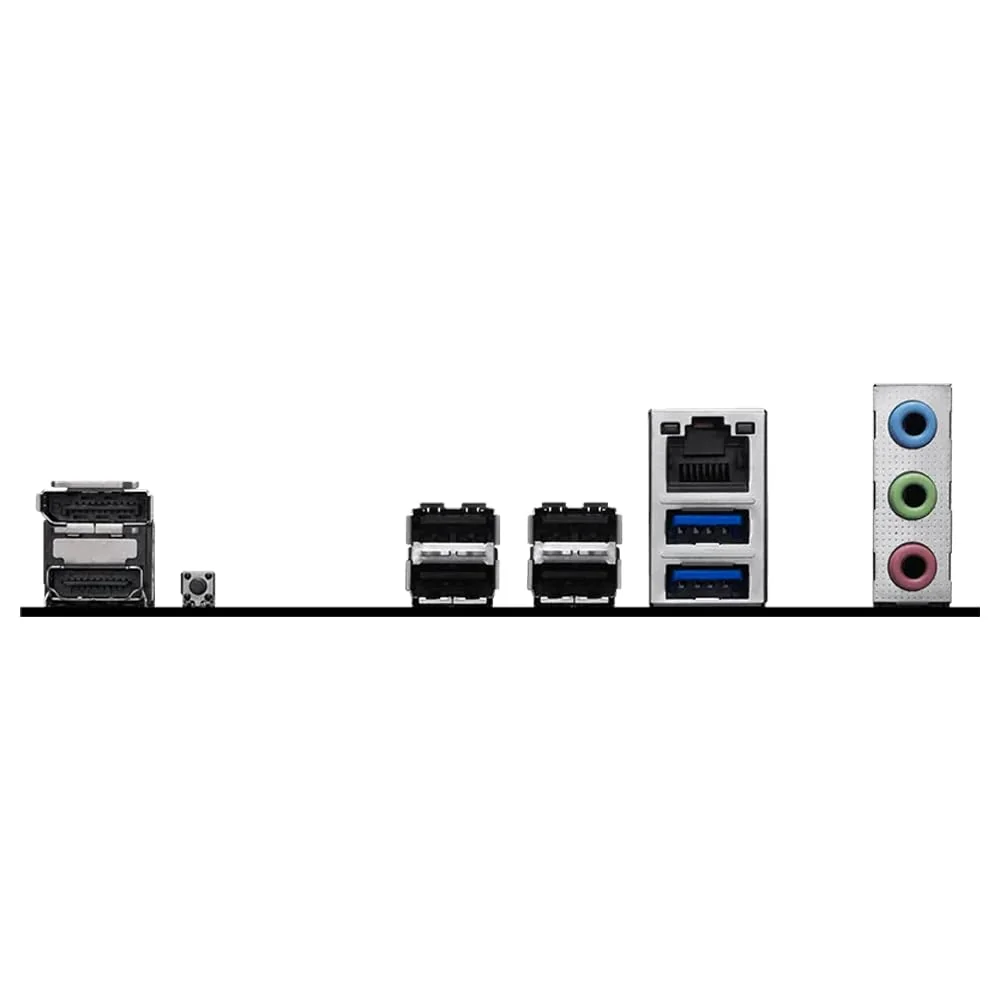

| USB Ports | Rear: 4× USB 2.0, 2× USB 5Gbps Type-A • Front headers: 4× USB 2.0, 2× USB 5Gbps Type-A, 1× USB 10Gbps Type-C |
| Thunderbolt | N/A |
| Video Output | 1× HDMI 2.1 (4K 60Hz), 1× DisplayPort 1.4 (4K 60Hz) |
| Audio | Realtek ALC897, 7.1-channel HD Audio |
| Integrated Graphics Support | Yes — video outputs work with CPUs that have integrated graphics |
| Power Connector | 24-pin ATX + 8-pin CPU |
| Cooling / Fan Headers | 1× CPU Fan, 2× System Fan |
| RGB / ARGB | 3× Addressable ARGB V2 (5V) + 1× RGB (12V) |
| Operating System Support | Windows 11 64-bit |
| Warranty | 1 Year |
