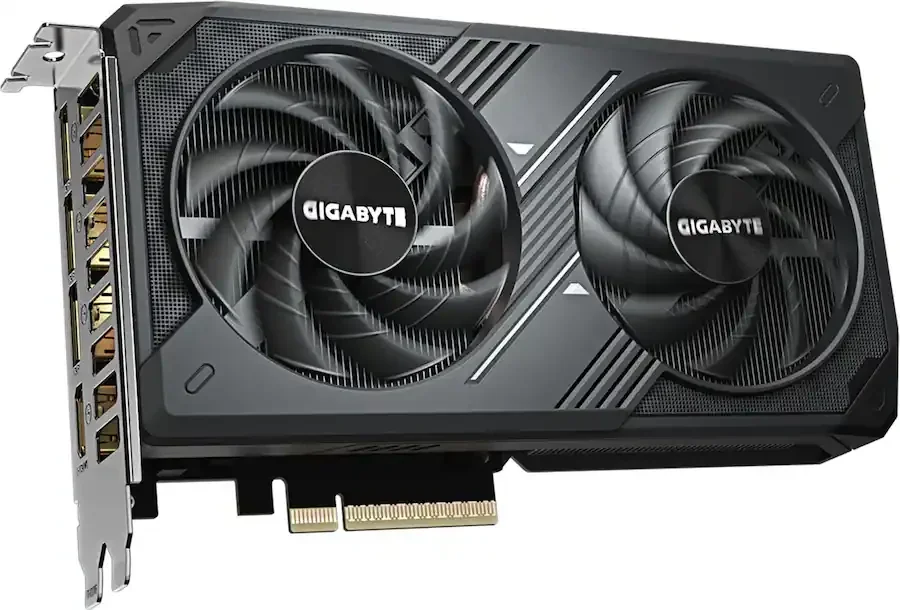

GIGABYTE GeForce RTX 5060 WINDFORCE MAX OC 8G Graphics Card – 8GB GDDR7, DLSS 4, Dual Fan
Gigabyte
NVDIA
The GIGABYTE GeForce RTX 5060 WINDFORCE MAX OC 8G is a compact, factory-overclocked graphics card built on NVIDIA's Blackwell architecture. With 3,840 CUDA cores, 8GB of GDDR7 memory on a 128-bit bus and a 2512 MHz core clock (above NVIDIA's 2497 MHz reference), it handles modern games at 1080p smoothly. 5th-generation Tensor Cores and DLSS 4 with Multi Frame Generation add AI-generated frames, while 4th-generation RT Cores deliver ray tracing.

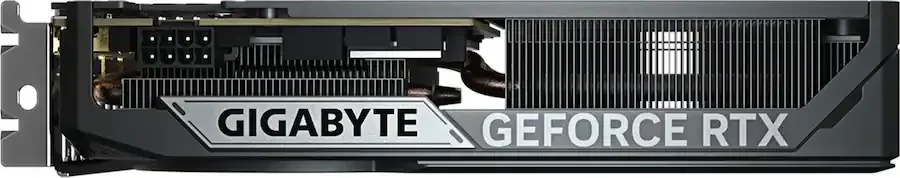

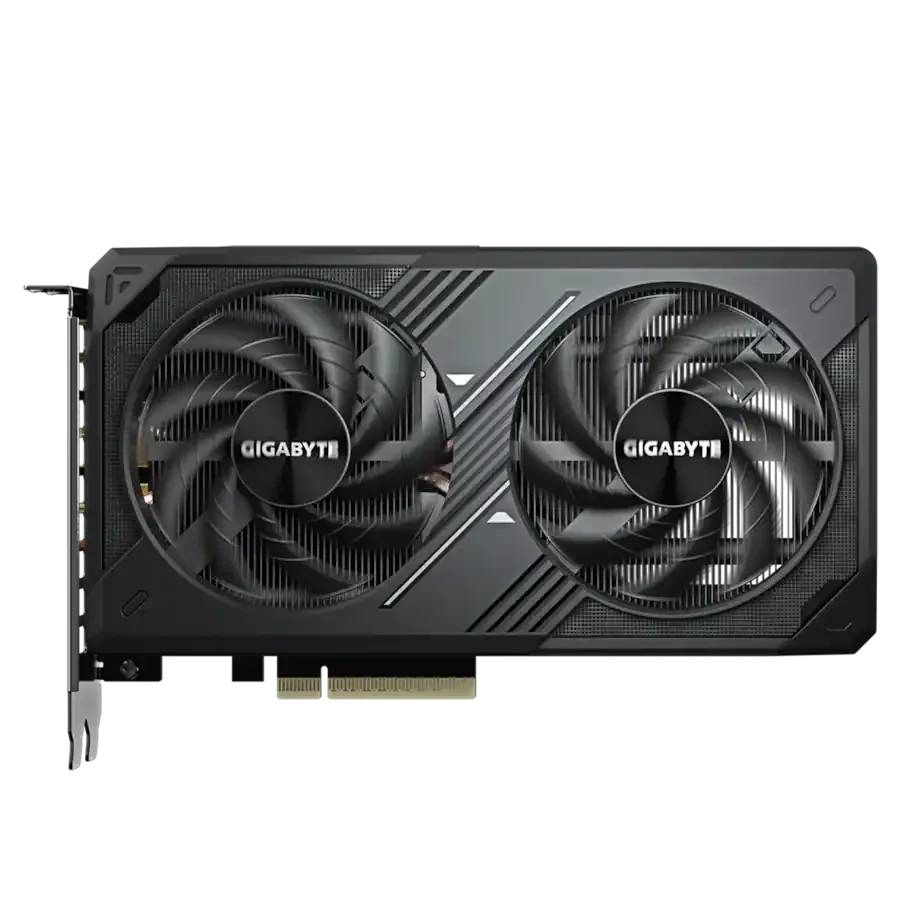

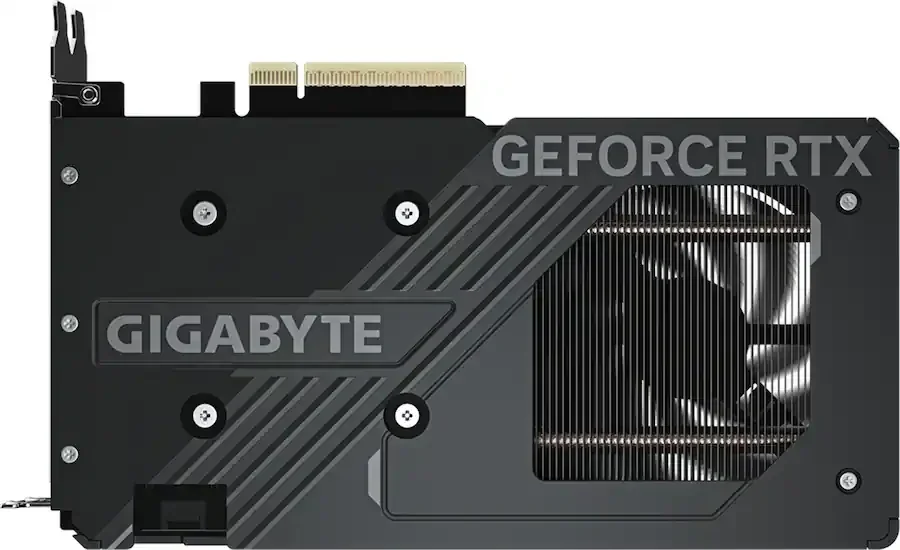

Cooling comes from the WINDFORCE system: two Hawk fans with 3D active fan control, a copper base, server-grade thermal gel and screen cooling to help keep temperatures in check. A reinforced structure strengthens the card, and Graphene Nano Lubricant is used in the fans for longer life.
At 199 mm long, it needs just one 8-pin power connector and a 550W PSU (recommended), which makes it a good fit for compact cases and many existing PCs. It has three DisplayPort 2.1b outputs and one HDMI 2.1b output, supporting up to four displays. GIGABYTE Control Center lets you tune and monitor the card.
Note that it has 8GB of VRAM, so very demanding new titles at high texture settings may need lower settings. It's best for 1080p, and for 1440p with tuned settings. NVIDIA Studio and the 9th-gen encoder also help with streaming and video editing.
📍 Visit Us: Absolute Computer & Mobile, Megha Market, Sahidchowk, Narayangarh, Chitwan
📞 Call/WhatsApp: 985-5063618
📧 Email: absolutecomputerngt@gmail.com
| SKU ID |
SKU-20716
|
|---|---|
| Product Type | Graphic Cards |
| Price (incl. tax) | NPR 81,999 |
| Availability | In stock (5) |
| Launch | May 19, 2025 (RTX 5060 availability date) |
| Segment | Mainstream desktop gaming graphics card |
| Brand | GIGABYTE |
| Series | NVIDIA GeForce RTX 50 Series (GIGABYTE WINDFORCE MAX series) |
| Model | GeForce RTX 5060 WINDFORCE MAX OC 8G (GV-N5060WF2MAX OC-8GD) |
| GPU Model | NVIDIA GeForce RTX 5060 (GB206) |
| Architecture | NVIDIA Blackwell |
| Fabrication Process | TSMC 4N (custom 5nm-class), per NVIDIA/TechPowerUp database |
| Die Size | About 181 mm² (GB206), per TechPowerUp database; confirm |
| Transistor Count | About 21.9 billion (GB206), per TechPowerUp database; confirm |
| Transistor Density | About 121 million per mm² (calculated from the two figures above) |
| GPU | 3,840 CUDA cores, 30 SMs, 120 5th-gen Tensor cores, 30 4th-gen RT cores, 120 TMUs, 48 ROPs; PCIe 5.0 interface (x8 link); 9th-gen NVENC encoder |
| Clock Speeds | Core clock: 2512 MHz OC (NVIDIA reference card: 2497 MHz) |
| Memory Configuration | 8GB GDDR7, 128-bit bus, 28 Gbps (about 448 GB/s, calculated) |
| Display Outputs | 3× DisplayPort 2.1b + 1× HDMI 2.1b; up to 7680×4320; supports up to 4 displays (multi-view) |
| API Support | DirectX 12 (Ultimate), OpenGL 4.6 |
| Performance | DLSS 4 with Multi Frame Generation, NVIDIA Reflex 2, 5th-gen Tensor Cores (up to 614 AI TOPS per NVIDIA), 4th-gen RT Cores; about 19 TFLOPS FP32 (calculated at 2.5 GHz) |
| Power Connectors | 1× 8-pin PCIe; recommended PSU: 550W |
| Card Dimensions | 199 (L) × 116 (W) × 40 (H) mm |
| TDP/TBP | 145W (NVIDIA reference TGP for the RTX 5060; Gigabyte lists only the 550W PSU recommendation) |
| Warranty | 1 Year |
