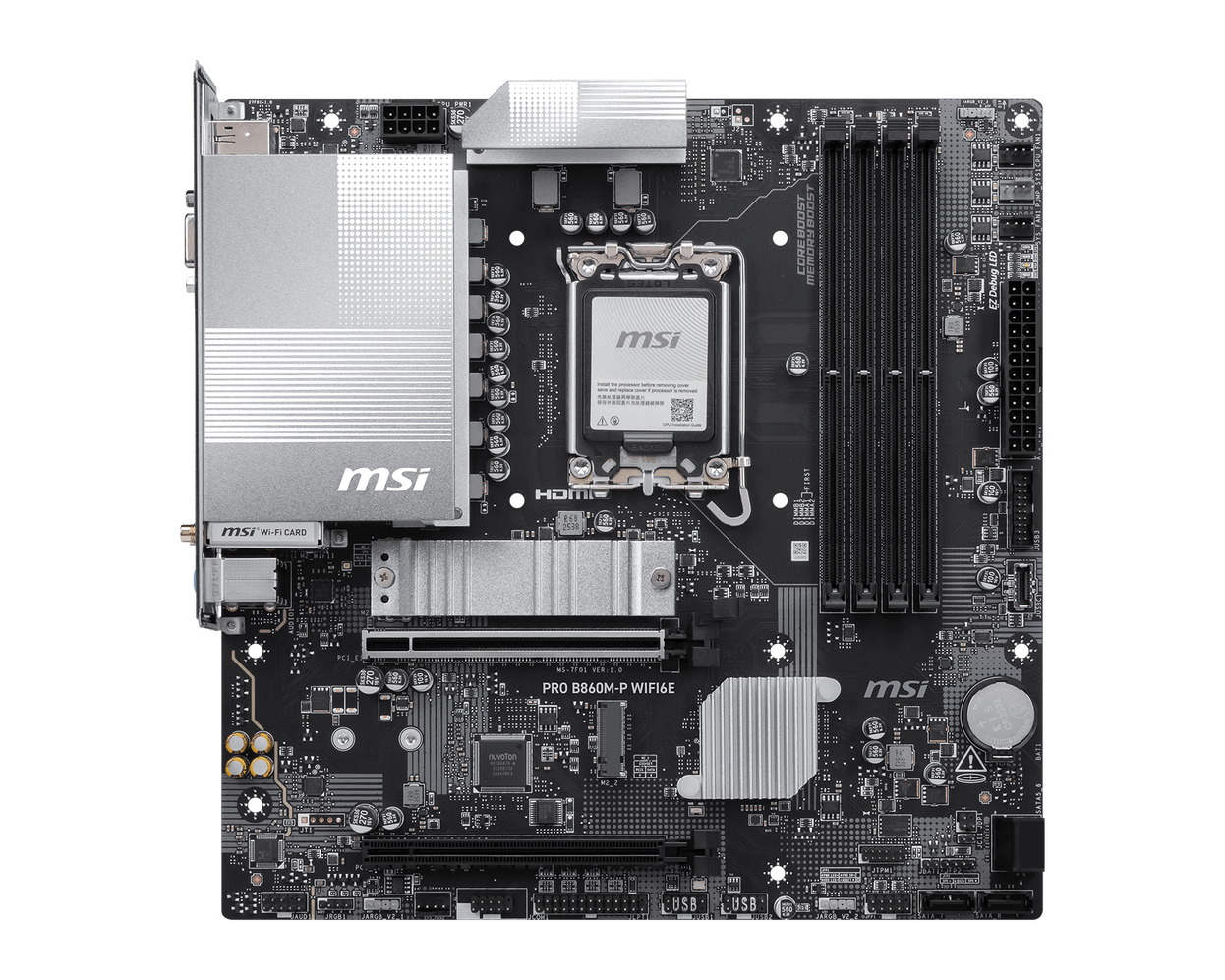

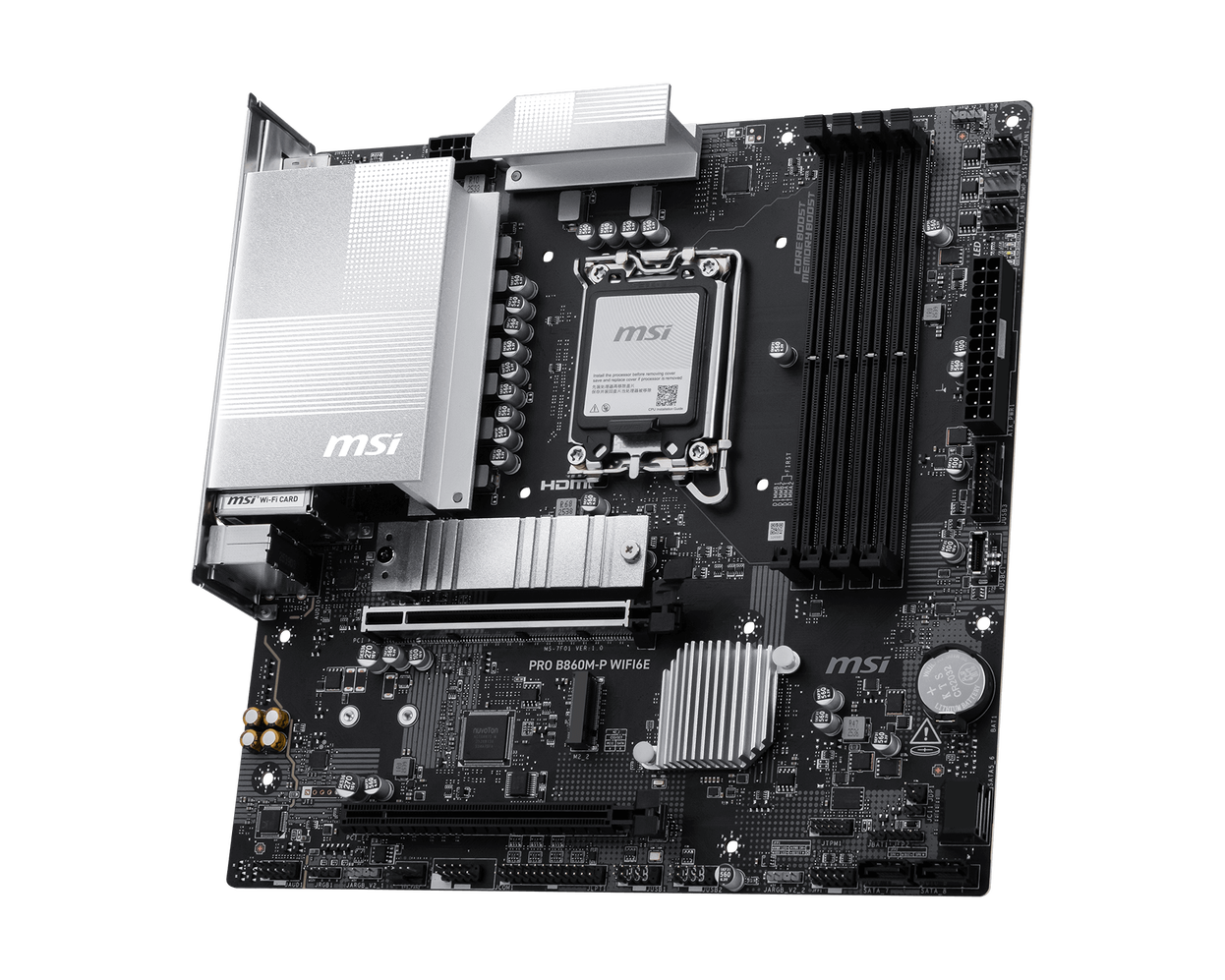

MSI PRO B860M-P WIFI6E Motherboard – Intel B860, DDR5, Wi-Fi 6E, 2.5G LAN
MSI
The MSI PRO B860M-P WIFI6E gives Intel Core Ultra (Series 2) builders a compact Micro-ATX platform with wireless already built in. Wi-Fi 6E and Bluetooth 5.3 come pre-installed, so there is no separate adapter to buy, and the EZ Antenna design makes attaching the antenna quick.
Four DDR5 slots support up to 256GB, with overclocked speeds up to 8800+ MT/s on a single module per channel. Storage includes a PCIe 5.0 x4 M.2 slot and a PCIe 4.0 x4 M.2 slot, plus four SATA ports. The main graphics slot is PCIe 5.0 x16 with EZ PCIe Clip II for easier GPU removal.
Networking is handled by Realtek 2.5Gbps LAN with MSI's AI LAN Manager. Display options are generous for the price: HDMI 2.1, two DisplayPort 1.4 outputs and VGA (these work with CPUs that include integrated graphics). Cooling and power are handled by a Direct 6+1+1+1 power design, an 8-pin CPU connector and an extended heatsink.
A sensible choice for home, office, school and light-gaming PCs where wireless and a flexible set of video outputs matter.
| SKU ID |
SKU-20700
|
|---|---|
| Product Type | Motherboard |
| Price (incl. tax) | NPR 28,599 |
| Availability | In stock (5) |
| Brand | MSI |
| Model | PRO B860M-P WIFI6E |
| Chipset | Intel B860 |
| CPU Socket | LGA 1851 |
| Processor Support | Intel Core Ultra Processors (Series 2) |
| Form Factor | Micro-ATX (243.84 × 243.84 mm) |
| Memory Type | DDR5 UDIMM (non-ECC, unbuffered) |
| Memory Slots | 4 (dual channel) |
| Maximum Memory Capacity | 256GB |
| Memory Speed | Up to 8800+ MT/s (OC); 6400–4800 MT/s (JEDEC); Intel XMP 3.0; CUDIMM supported |
| M.2 Slots | 2 |
| M.2 Interface | M.2_1: PCIe 5.0 x4 (CPU); M.2_2: PCIe 4.0 x4 (chipset) |
| PCIe x16 Slot | 2× PCIe x16-size slots: PCIe 5.0 x16 (CPU) and PCIe 4.0 x4 (chipset) |
| PCIe Expansion Slots | No separate x1 slots |
| SATA Ports | 4× SATA 6Gb/s (RAID 0/1/5/10) |
| LAN | Realtek 8125 2.5Gbps LAN |
| Wi-Fi | Wi-Fi 6E (pre-installed module, up to 2.4Gbps, 802.11ax) |
| Bluetooth | Bluetooth 5.3 |
| USB Type-C | 1× USB 5Gbps Type-C (front-panel header) |
| USB Ports | Rear: 3× USB 5Gbps Type-A, 2× USB 2.0 • Front headers: 4× USB 2.0, 2× USB 5Gbps Type-A, 1× USB 5Gbps Type-C |

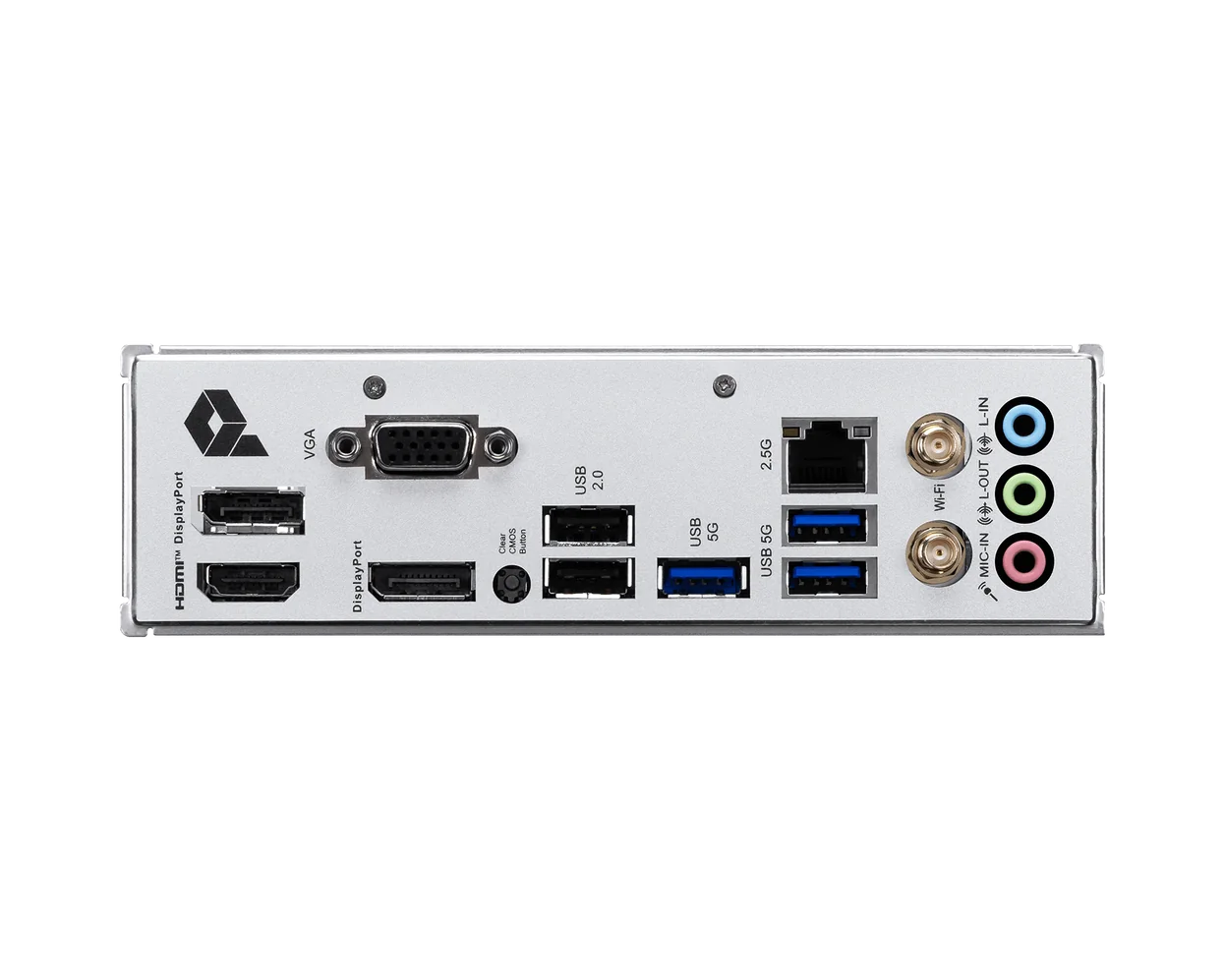

| Video Output | 1× HDMI 2.1 (TMDS, 4K 60Hz), 2× DisplayPort 1.4 (4K 60Hz), 1× VGA |
| Audio | Realtek ALC897, 7.1-channel HD Audio |
| Integrated Graphics Support | Yes — video outputs work with CPUs that have integrated graphics |
| Power Connector | 24-pin ATX + 8-pin CPU (Direct 6+1+1+1 phase design) |
| Cooling / Fan Headers | 1× CPU Fan, 1× Combo Fan (Pump/System), 2× System Fan |
| RGB / ARGB | 3× Addressable ARGB V2 (5V) + 1× RGB (12V) |
| Operating System Support | Windows 11 64-bit |
| Warranty | 1 Years |
