MSI PRO Z890-S WiFi 6E Motherboard – Intel Z890, DDR5, USB 20Gbps, 2.5G LAN
MSI

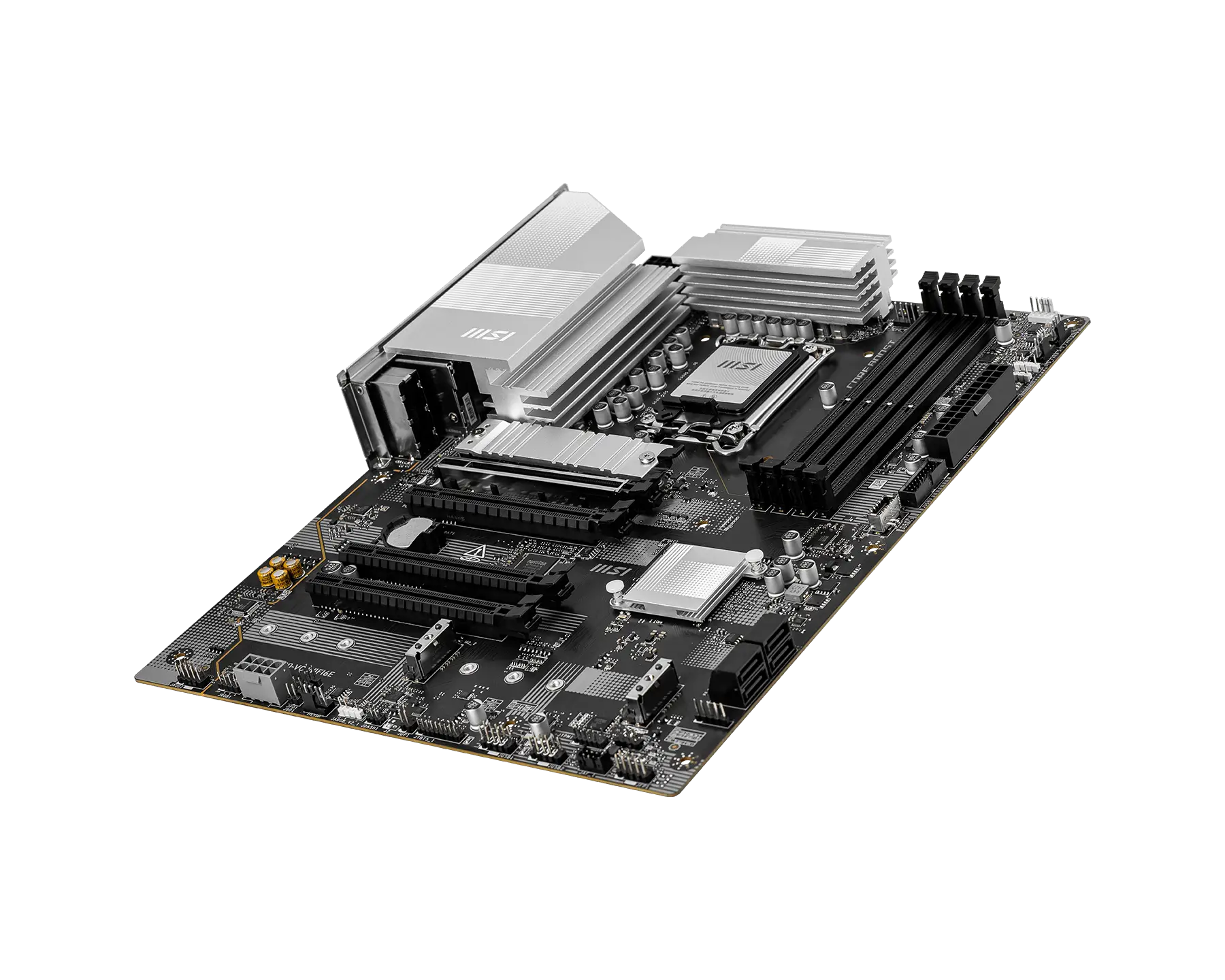

The MSI PRO Z890-S WIFI6E brings the Intel Z890 platform to a business-style silver ATX design. It supports Intel Core Ultra (Series 2) processors on LGA 1851 and offers four DDR5 slots (up to 256GB, with overclocked speeds up to 8800+ MT/s) — a good fit for multitasking, editing and development workloads.
Storage options are generous: one PCIe 5.0 x4 M.2 slot and two PCIe 4.0 x4 M.2 slots, plus four SATA ports, with RAID support for both SATA and NVMe drives. Expansion includes a PCIe 5.0 x16 graphics slot and extra PCIe 4.0 x4 and PCIe 3.0 x1 slots.
USB is a highlight: two USB 20Gbps Type-C ports (one rear, one front header) and a total of eight USB 5Gbps Type-A connections make it easy to connect fast drives and accessories. Wi-Fi 6E and Bluetooth 5.3 come pre-installed, alongside Realtek 2.5Gbps LAN.
Supplemental 8-pin PCIe power, dual CPU power connectors, an extended heatsink and M.2 Shield Frozr help keep the system stable and cool. Good for professional desktops, creator PCs and high-performance office builds.
The MSI PRO Z890-S WIFI6E brings the Intel Z890 platform to a business-style silver ATX design. It supports Intel Core Ultra (Series 2) processors on LGA 1851 and offers four DDR5 slots (up to 256GB, with overclocked speeds up to 8800+ MT/s) — a good fit for multitasking, editing and development workloads.
Storage options are generous: one PCIe 5.0 x4 M.2 slot and two PCIe 4.0 x4 M.2 slots, plus four SATA ports, with RAID support for both SATA and NVMe drives. Expansion includes a PCIe 5.0 x16 graphics slot and extra PCIe 4.0 x4 and PCIe 3.0 x1 slots.
USB is a highlight: two USB 20Gbps Type-C ports (one rear, one front header) and a total of eight USB 5Gbps Type-A connections make it easy to connect fast drives and accessories. Wi-Fi 6E and Bluetooth 5.3 come pre-installed, alongside Realtek 2.5Gbps LAN.
Supplemental 8-pin PCIe power, dual CPU power connectors, an extended heatsink and M.2 Shield Frozr help keep the system stable and cool. Good for professional desktops, creator PCs and high-performance office builds.
| SKU ID |
SKU-20701
|
|---|---|
| Product Type | Motherboard |
| Price (incl. tax) | NPR 41,499 |
| Availability | In stock (5) |
| Brand | MSI |
| Model | PRO Z890-S WIFI6E |
| Chipset | Intel Z890 |
| CPU Socket | LGA 1851 |
| Processor Support | Intel Core Ultra Processors (Series 2) |
| Form Factor | ATX (243.84 × 304.8 mm) |
| Memory Type | DDR5 UDIMM (non-ECC, unbuffered) |
| Memory Slots | 4 (dual channel) |
| Maximum Memory Capacity | 256GB |
| Memory Speed | Up to 8800+ MT/s (OC); 6400–4800 MT/s (JEDEC); Intel XMP 3.0; CUDIMM supported |
| M.2 Slots | 3 |
| M.2 Interface | M.2_1: PCIe 5.0 x4 (CPU); M.2_2: PCIe 4.0 x4; M.2_3: PCIe 4.0 x4 / SATA (chipset) |
| PCIe x16 Slot | 1× PCIe 5.0 x16 (CPU) |
| PCIe Expansion Slots | 1× PCIe 4.0 x4 (CPU), 1× PCIe 4.0 x4 (chipset), 1× PCIe 3.0 x1 (all in x16-size slots) |
| SATA Ports | 4× SATA 6Gb/s (RAID 0/1/5/10; NVMe RAID 0/1/5) |
| LAN | Realtek 8125D 2.5Gbps LAN |
| Wi-Fi | Wi-Fi 6E (pre-installed module, up to 2.4Gbps) |
| Bluetooth | Bluetooth 5.3 |
| USB Type-C | 2× USB 20Gbps Type-C (1 rear + 1 front header) |
| USB Ports | Rear: 6× USB 5Gbps Type-A, 1× USB 20Gbps Type-C • Front headers: 4× USB 2.0, 2× USB 5Gbps Type-A, 1× USB 20Gbps Type-C |
| Thunderbolt | N/A |
| Video Output | Realtek ALC897, 7.1-channel HD Audio with Audio Boost |
| Audio | Realtek ALC897, 7.1-channel HD Audio with Audio Boost |
| Integrated Graphics Support | Yes — video outputs work with CPUs that have integrated graphics |
| Power Connector | 24-pin ATX + 2× CPU power + 8-pin PCIe supplemental power |
| Cooling / Fan Headers | 1× CPU Fan, 1× Combo Fan (Pump/System), 4× System Fan |
| RGB / ARGB | 3× Addressable ARGB V2 (5V) + 1× RGB (12V) |
| Operating System Support | Windows 11 64-bit |
| Warranty | 1 Year |
