MSI B850 Gaming Plus WiFi 6E Motherboard – AMD B850, AM5, DDR5, 2.5G LAN
MSI

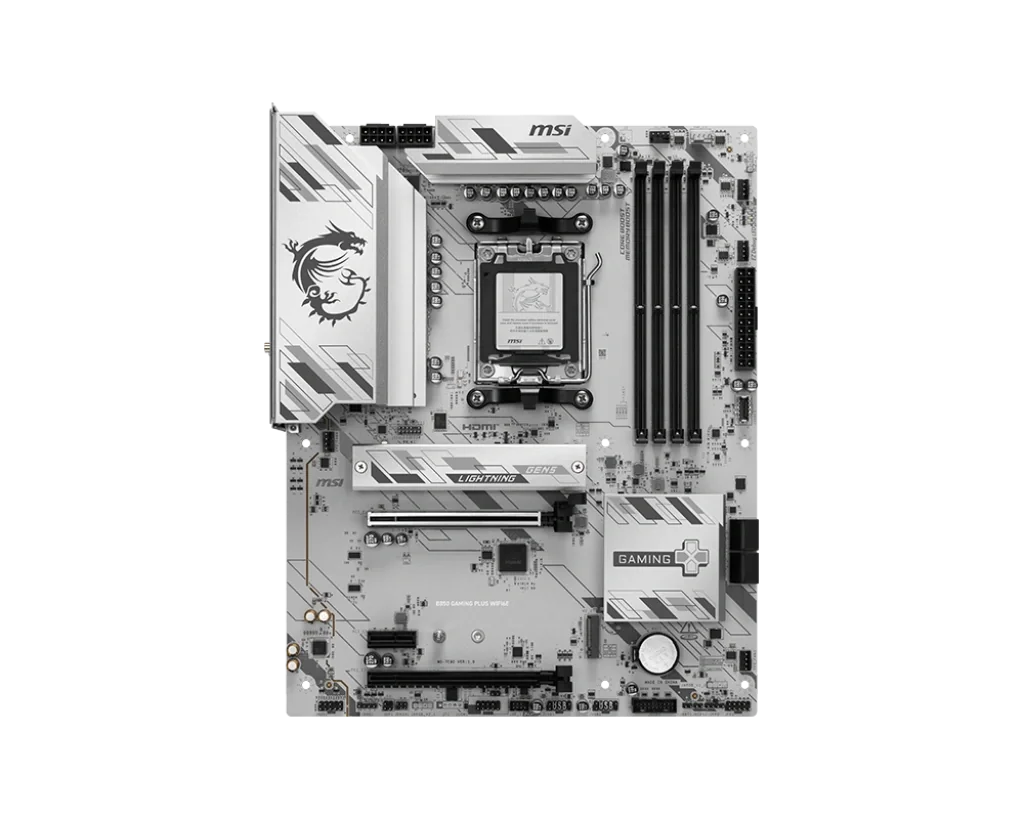

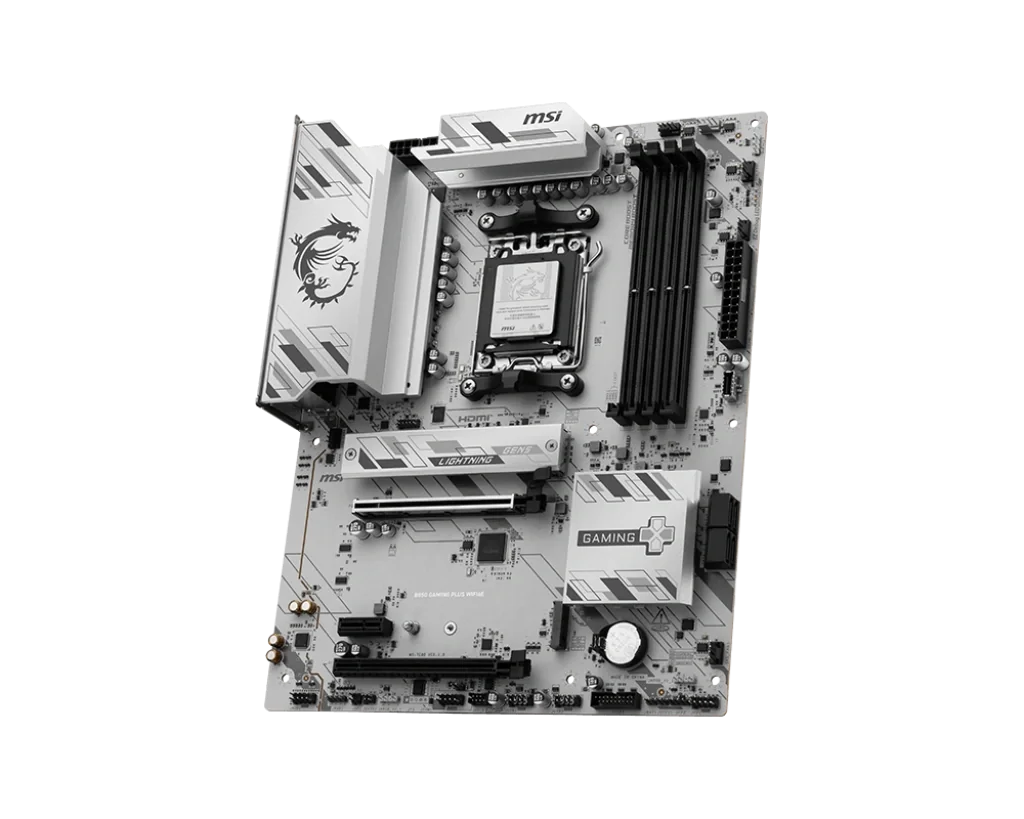

The MSI B850 GAMING PLUS WIFI6E is a full-size ATX board that balances value and premium hardware for AMD Ryzen 9000, 8000 and 7000 processors on Socket AM5.
Power delivery uses a 12+2+1 Duet Rail design with dual 8-pin CPU connectors, an extended heatsink and 7W/mK MOSFET thermal pads for stable performance. Four DDR5 slots (up to 256GB, with overclocking up to 8200+ MT/s) feed your CPU, while the PCIe 4.0 x16 slot with EZ PCIe Clip II supports your graphics card.

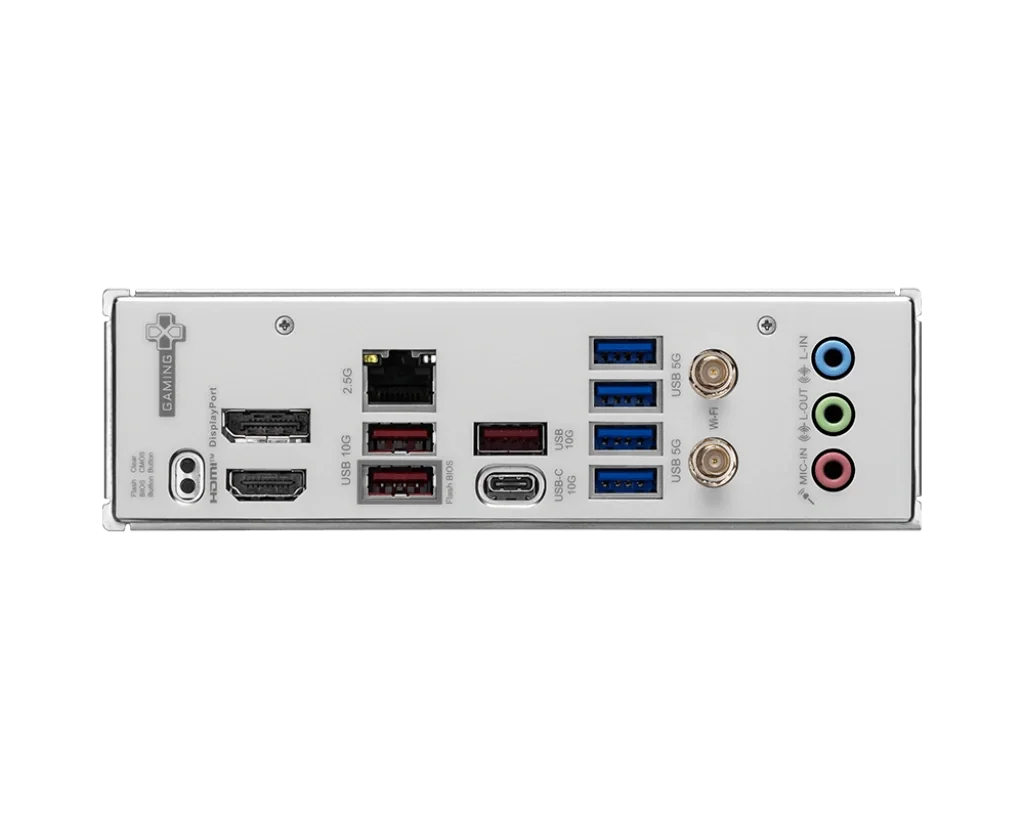

Storage includes a PCIe 5.0 x4 M.2 slot and a PCIe 4.0 x4 M.2 slot with M.2 Shield Frozr, plus four SATA ports. Wi-Fi 6E and Bluetooth 5.3 come built in, paired with Realtek 2.5G LAN. USB is generous: five USB 10Gbps ports (including two Type-C) and six USB 5Gbps Type-A connections.
An excellent platform for gaming PCs, streaming setups and everyday builds that need wireless without extra adapters.
📍 Visit Us: Absolute Computer & Mobile, Megha Market, Sahidchowk, Narayangarh, Chitwan
📞 Call/WhatsApp: 985-5063618
📧 Email: absolutecomputerngt@gmail.com
| SKU ID |
SKU-20707
|
|---|---|
| Product Type | Motherboard |
| Price (incl. tax) | NPR 30,399 |
| Availability | In stock (5) |
| Brand | MSI |
| Model | B850 GAMING PLUS WIFI6E |
| Chipset | AMD B850 |
| CPU Socket | Socket AM5 |
| Processor Support | AMD Ryzen 9000 / 8000 / 7000 Series desktop processors |
| Form Factor | ATX |
| Memory Type | DDR5 UDIMM (non-ECC) |
| Memory Slots | 4 (dual channel) |
| Maximum Memory Capacity | 256GB |
| Memory Speed | Up to 8200+ MT/s (OC) |
| M.2 Slots | 2 |
| M.2 Interface | 1× PCIe 5.0 x4 (128Gbps), 1× PCIe 4.0 x4 (64Gbps) |
| PCIe x16 Slot | 1× PCIe 4.0 x16 |
| PCIe Expansion Slots | 1× PCIe 4.0 x4, 1× PCIe 3.0 x1 |
| SATA Ports | 4× SATA 6Gb/s |
| LAN | Realtek 2.5Gbps LAN |
| Wi-Fi | Wi-Fi 6E |
| Bluetooth | Wi-Fi 6E |
| USB Type-C | 2× USB 10Gbps Type-C |
| USB Ports | 5× USB 10Gbps (3 Type-A + 2 Type-C), 6× USB 5Gbps Type-A, 4× USB 2.0 (rear + front headers combined) |
| Thunderbolt | N/A |
| Video Output | HDMI 2.1 (4K 60Hz), DisplayPort 1.4 |
| Audio | Realtek 7.1-channel HD Audio with Audio Boost |
| Integrated Graphics Support | Yes — video outputs work with Ryzen CPUs that have integrated graphics |
| Power Connector | 24-pin ATX + dual 8-pin CPU power (12+2+1 Duet Rail with P-PAK) |
| Cooling / Fan Headers | CPU Fan + Pump/System + System Fan headers (exact count: see manual) |
| RGB / ARGB | See manual (ARGB/RGB headers supported via Mystic Light) |
| Operating System Support | Windows 11 64-bit |
| Warranty | 1 Year |
