MSI PRO B850M-P Motherboard – AMD B850, AM5, DDR5, PCIe 5.0, 5G LAN (mATX)
MSI

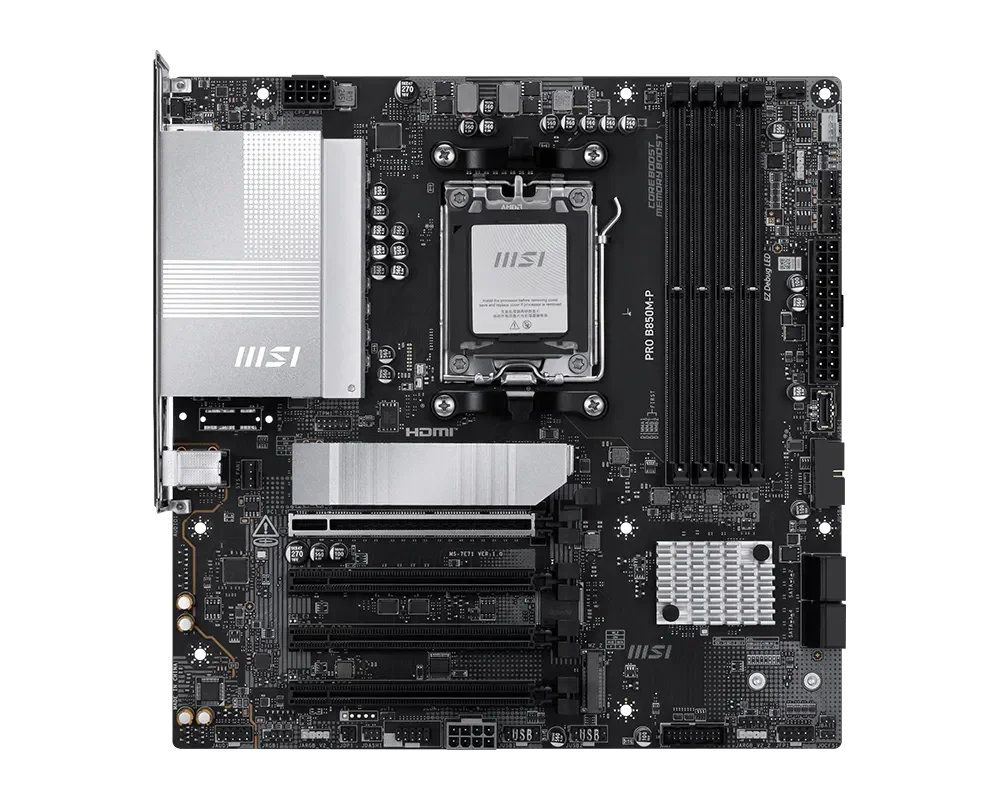

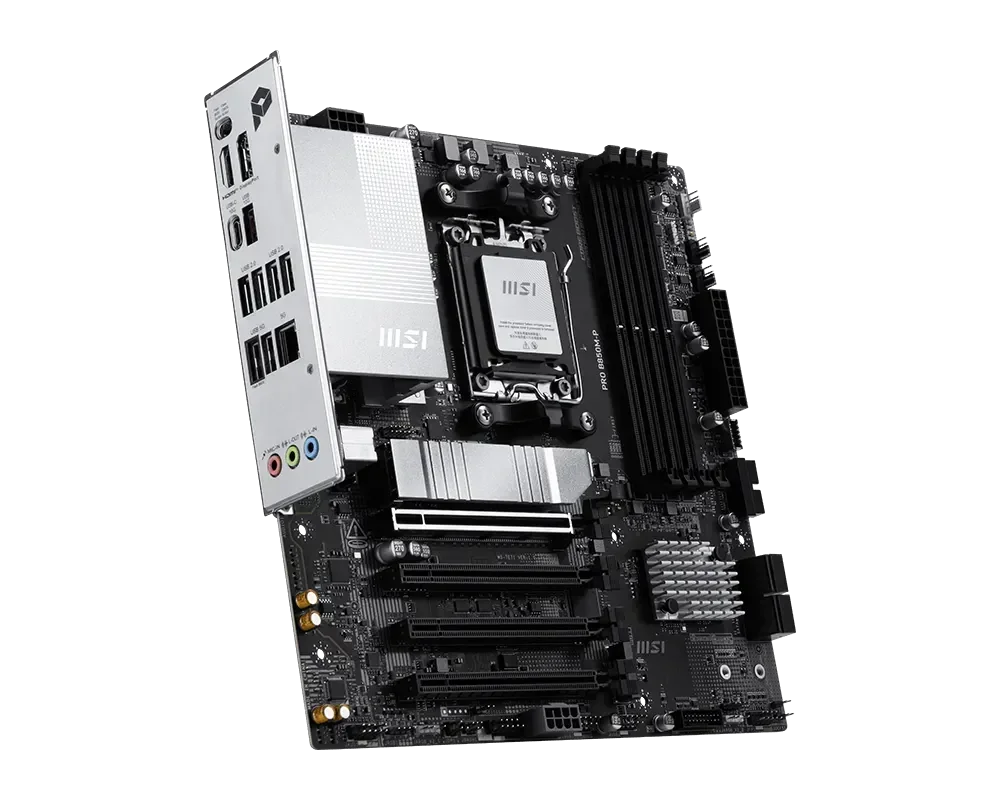

The MSI PRO B850M-P is a compact Micro-ATX board that brings the newer AMD B850 chipset to Ryzen 9000, 8000 and 7000 desktop processors on Socket AM5.
It offers four DDR5 slots (up to 256GB) with AMD EXPO and overclocking up to 8200+ MT/s on Ryzen 9000. A PCIe 5.0 x16 slot is ready for current and future graphics cards, and three M.2 slots (one PCIe 5.0 x4, one PCIe 4.0 x4, one PCIe 4.0 x2) with EZ M.2 Shield Frozr II give you fast, easy-to-install storage, alongside four SATA ports.

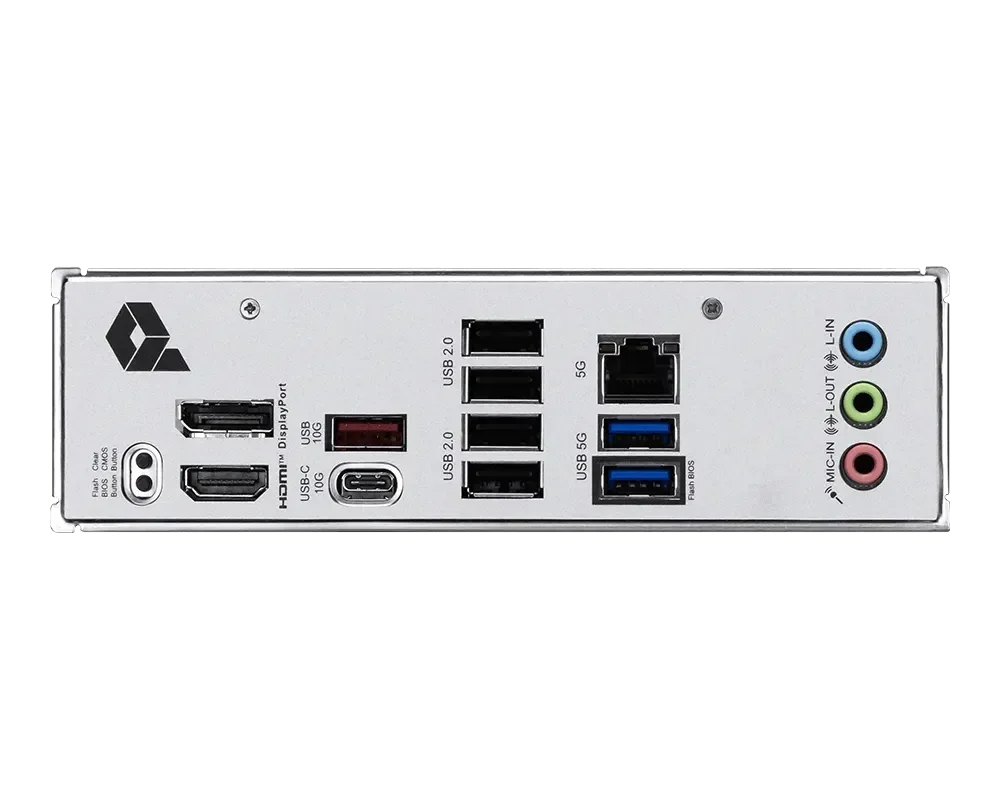

Networking is a Realtek 5Gbps LAN, and USB connectivity includes USB 10Gbps Type-A and two Type-C connections (rear and front header) plus six 5Gbps Type-A connections. HDMI 2.1 and DisplayPort 1.4 support Ryzen CPUs with integrated graphics.
Silver PRO styling and EZ PCIe Clip II make it a tidy, practical choice for productivity PCs, home builds and mid-range gaming. There is no onboard Wi-Fi on this version.
📍 Visit Us: Absolute Computer & Mobile, Megha Market, Sahidchowk, Narayangarh, Chitwan
📞 Call/WhatsApp: 985-5063618
📧 Email: absolutecomputerngt@gmail.com
| SKU ID |
SKU-20706
|
|---|---|
| Product Type | Motherboard |
| Price (incl. tax) | NPR 27,199 |
| Availability | In stock (5) |
| Brand | MSI |
| Model | PRO B850M-P |
| Chipset | AMD B850 |
| CPU Socket | Socket AM5 |
| Processor Support | AMD Ryzen 9000 / 8000 / 7000 Series desktop processors |
| Form Factor | Micro-ATX |
| Memory Type | DDR5 UDIMM (non-ECC, unbuffered) |
| Memory Slots | 4 (dual channel) |
| Maximum Memory Capacity | 256GB |
| Memory Speed | Up to 8200+ MT/s (OC, Ryzen 9000); 5600–4800 MT/s (JEDEC); AMD EXPO; CUDIMM (clock-driver bypass mode only) |
| M.2 Slots | 3 |
| M.2 Interface | 1× PCIe 5.0 x4, 1× PCIe 4.0 x4, 1× PCIe 4.0 x2 |
| PCIe x16 Slot | 1× PCIe 5.0 x16 |
| PCIe Expansion Slots | 3× PCIe 3.0 x1 |
| SATA Ports | 4× SATA 6Gb/s |
| LAN | Realtek 8126 5Gbps LAN |
| Wi-Fi | N/A (Wi-Fi version sold separately as PRO B850M-P WIFI) |
| Bluetooth | N/A |
| USB Type-C | 2× USB 10Gbps Type-C (1 rear + 1 front header) |
| USB Ports | 3× USB 10Gbps (1 Type-A + 2 Type-C), 6× USB 5Gbps Type-A, 8× USB 2.0 (rear + front headers combined) |
| Thunderbolt | N/A |
| Video Output | 1× HDMI 2.1 (4K 60Hz), 1× DisplayPort 1.4 |
| Audio | Realtek 7.1-channel HD Audio with Audio Boost |
| Integrated Graphics Support | Yes — video outputs work with Ryzen CPUs that have integrated graphics |
| Power Connector | 24-pin ATX + CPU power connector (see manual) |
| Cooling / Fan Headers | CPU Fan + System Fan headers (exact count: see manual) |
| RGB / ARGB | See manual |
| Operating System Support | Windows 11 64-bit |
| Warranty | 1 Year |
