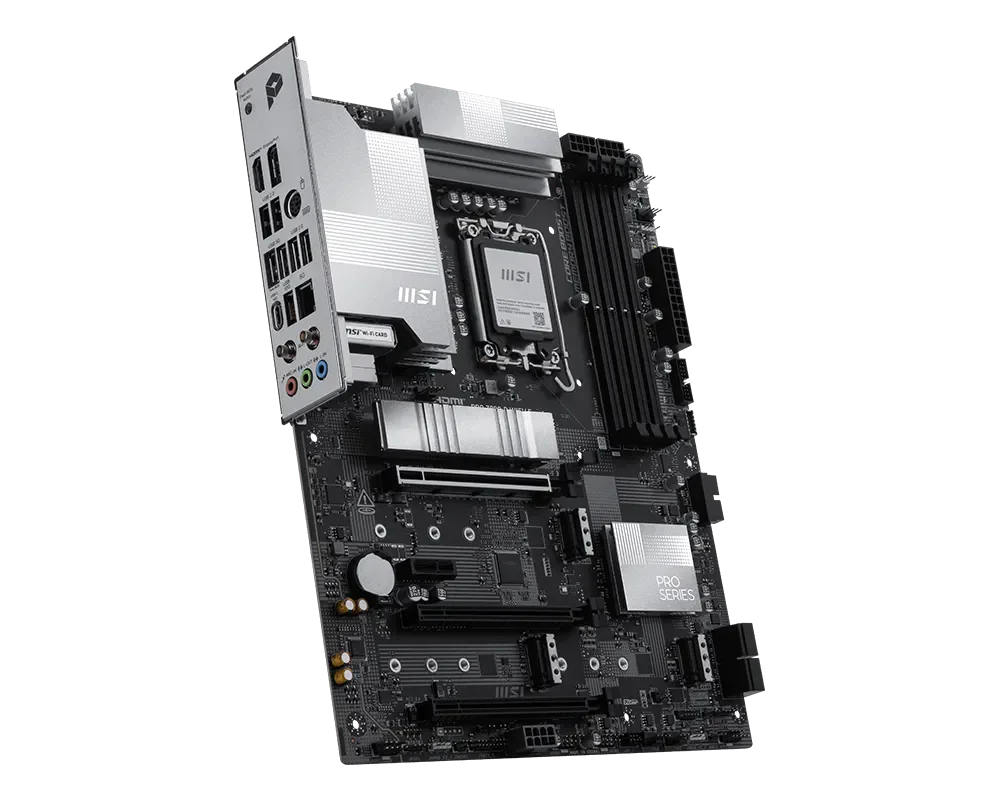

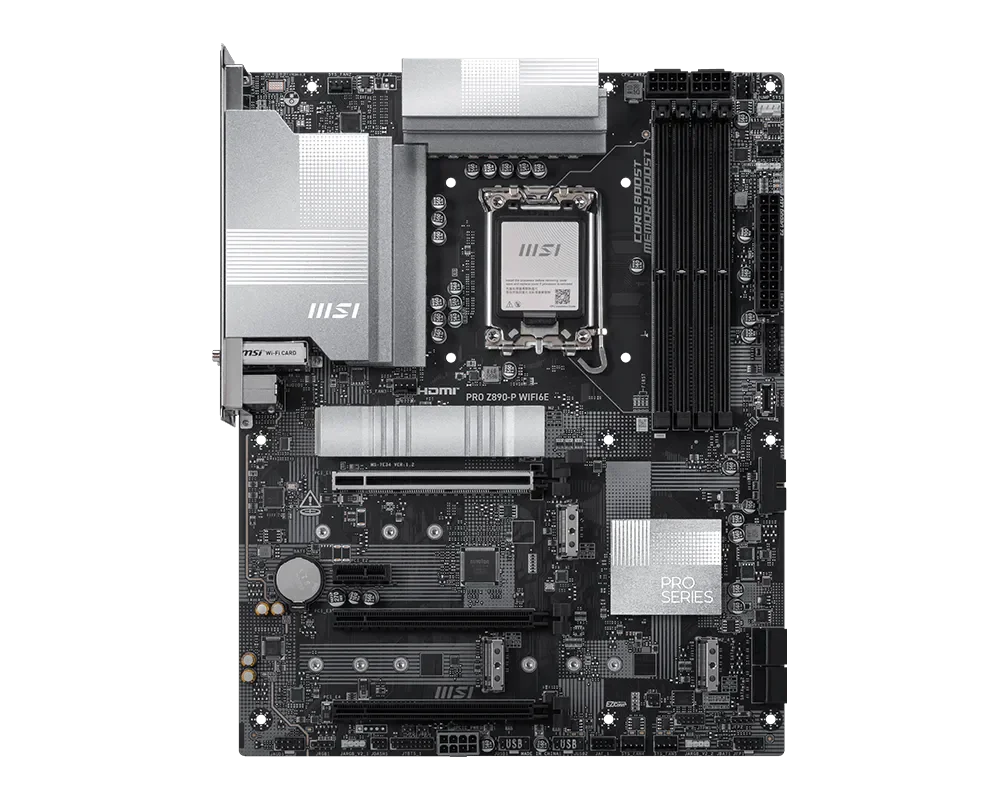

MSI PRO Z890-P WiFi 6E Motherboard – Intel Z890, DDR5 9200+, 5G LAN, 4× M.2
MSI
The MSI PRO Z890-P WIFI6E is built for users who want a feature-rich Z890 platform in a restrained silver design. It supports Intel Core Ultra (Series 2) processors and four DDR5 slots (up to 256GB), with memory overclocking up to 9200+ MT/s on a single module per channel.
Storage is a standout: four M.2 slots (one PCIe 5.0 x4 with EZ M.2 Shield Frozr II, and three PCIe 4.0 x4) plus four SATA ports — plenty for a fast OS drive, game library and scratch disks. Expansion includes a PCIe 5.0 x16 graphics slot and extra PCIe 4.0 slots.
Networking pairs Realtek 5Gbps LAN with Wi-Fi 6E and Bluetooth 5.3. USB is broad, with a USB 20Gbps Type-C front header, USB 10Gbps Type-A and Type-C on the rear, and several USB 5Gbps ports.
For power delivery it uses a 14+1+1+1 Duet Rail design with dual 8-pin CPU connectors and an additional 8-pin PCIe connector, with five system-fan headers for flexible cooling. Suited to creator PCs, multitasking workstations and high-end home builds.
📍 Visit Us: Absolute Computer & Mobile, Megha Market, Sahidchowk, Narayangarh, Chitwan
📞 Call/WhatsApp: 985-5063618
📧 Email: absolutecomputerngt@gmail.com
| SKU ID |
SKU-20702
|
|---|---|
| Product Type | Motherboard |
| Price (incl. tax) | NPR 43,299 |
| Availability | In stock (7) |
| Brand | MSI |
| Model | PRO Z890-P WIFI6E |
| Chipset | Intel Z890 |
| CPU Socket | LGA 1851 |
| Processor Support | Intel Core Ultra Processors (Series 2) |
| Form Factor | ATX (approx. 305 × 244 mm) |
| Memory Type | DDR5 UDIMM (non-ECC, unbuffered) |
| Memory Slots | 4 (dual channel) |
| Maximum Memory Capacity | 256GB |
| Memory Speed | Up to 9200+ MT/s (OC); 6400–4800 MT/s (JEDEC); Intel XMP 3.0; CUDIMM supported |
| M.2 Slots | 4 |
| M.2 Interface | 1× PCIe 5.0 x4 + 3× PCIe 4.0 x4 |
| PCIe x16 Slot | 1× PCIe 5.0 x16 |
| PCIe Expansion Slots | 2× PCIe 4.0 x4, 1× PCIe 4.0 x1 |
| SATA Ports | 4× SATA 6Gb/s |
| LAN | Realtek 8126 5Gbps LAN |
| Wi-Fi | Wi-Fi 6E (pre-installed module, up to 2.4Gbps) |
| Bluetooth | Bluetooth 5.3 |
| USB Type-C | 1× USB 10Gbps Type-C (rear) + 1× USB 20Gbps Type-C (front header) |

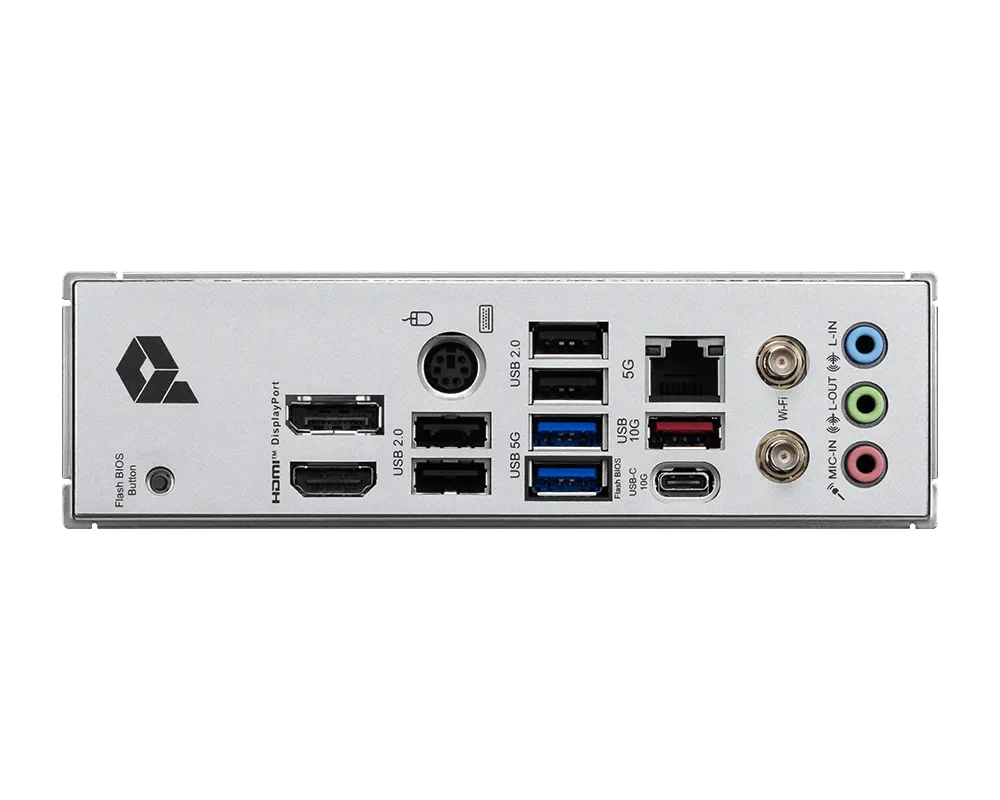

| USB Ports | Rear: 4× USB 2.0, 2× USB 5Gbps Type-A, 1× USB 10Gbps Type-A, 1× USB 10Gbps Type-C • Front headers: 4× USB 2.0, 4× USB 5Gbps Type-A, 1× USB 20Gbps Type-C |
| Thunderbolt | N/A |
| Video Output | HDMI 2.1 (4K 60Hz), DisplayPort 1.4 |
| Audio | Realtek 7.1-channel HD Audio with Audio Boost |
| Integrated Graphics Support | Yes — video outputs work with CPUs that have integrated graphics |
| Power Connector | 24-pin ATX + 2× CPU power + 8-pin PCIe supplemental power (14+1+1+1 Duet Rail, 55A DrMOS) |
| Cooling / Fan Headers | 1× CPU Fan, 1× Pump/System Fan, 5× System Fan |
| RGB / ARGB | 3× Addressable ARGB V2 (5V) + 1× RGB (12V) |
| Operating System Support | Windows 11 64-bit |
| Warranty | 1 Year |
