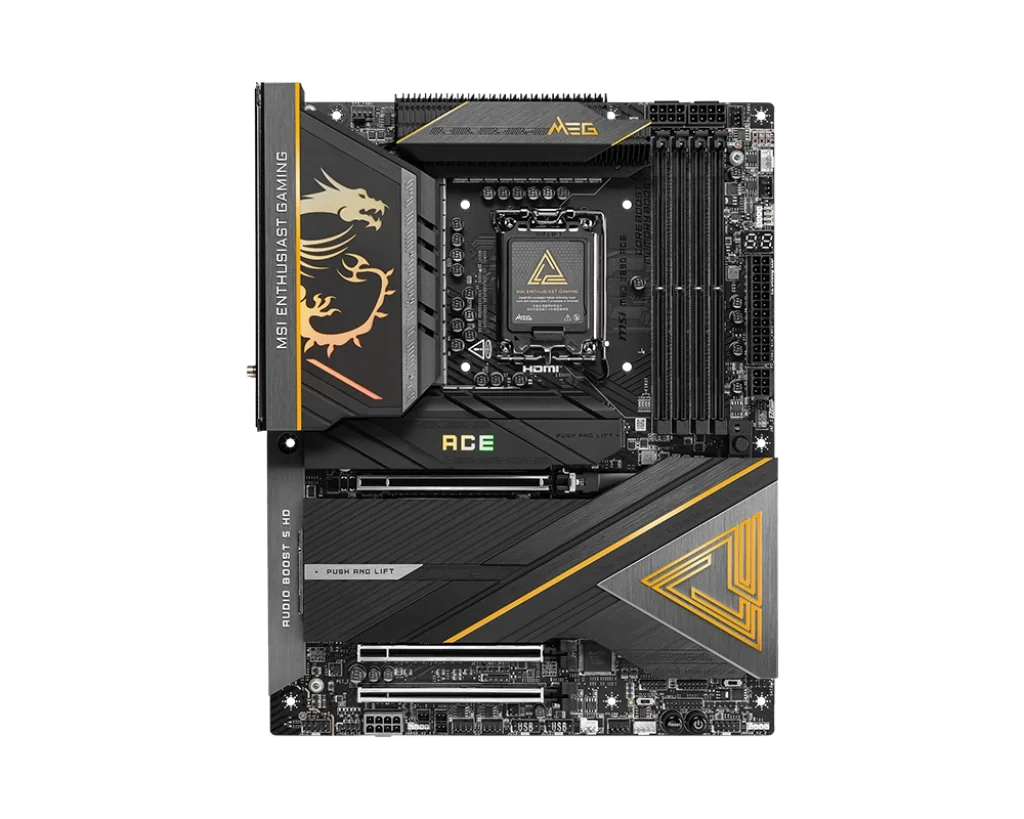

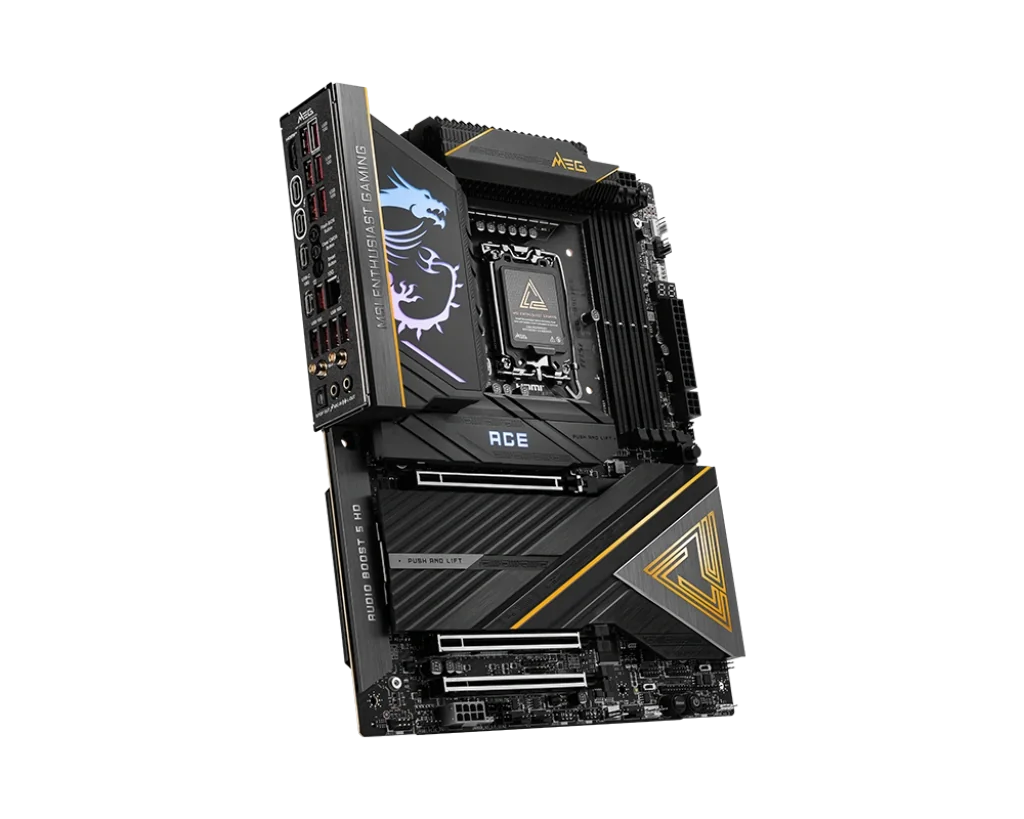

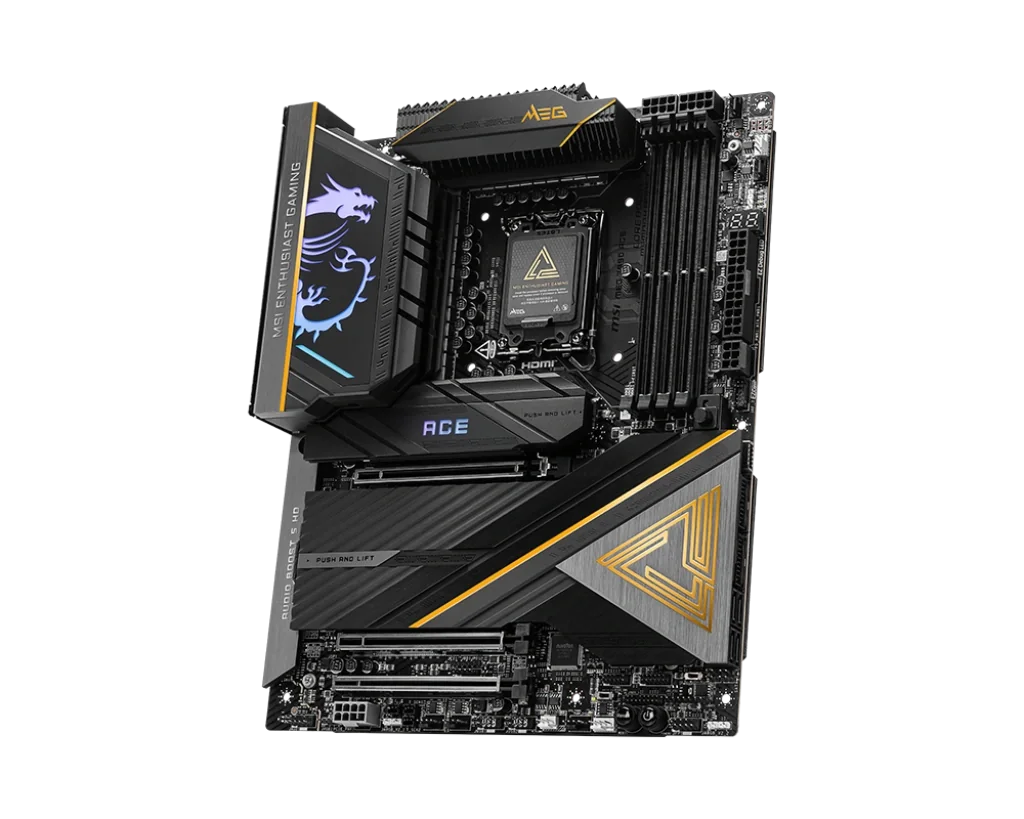

MSI MEG Z890 ACE Motherboard – Intel Z890, Dual Thunderbolt 4, 10G LAN, Wi-Fi 7, 5× M.2
MSI
The MSI MEG Z890 ACE is the flagship of this lineup — an enthusiast ATX motherboard for Intel Core Ultra (Series 2) processors on LGA 1851. It is designed for users who want maximum connectivity, storage and overclocking headroom: four DDR5 slots up to 256GB with memory overclocking up to 9200+ MT/s.
Power delivery is built for demanding CPUs, with a 24+2+1+1 Duet Rail design using 110A power stages, dual 8-pin CPU connectors and an extra 8-pin PCIe connector. A premium Frozr cooling design helps keep the VRM stable.
Connectivity is the real showpiece: two Thunderbolt 4 ports (up to 40Gbps, 15W charging and daisy-chaining), Marvell 10Gbps LAN, Intel Killer Wi-Fi 7 (up to 5.8Gbps) and Bluetooth 5.4. USB is almost limitless — 11 USB 10Gbps Type-A and 2 Type-C ports on the rear alone — plus a 20Gbps front Type-C header.
Storage includes five M.2 slots (PCIe 5.0 x4 and PCIe 4.0 x4 options, with M.2_4 switchable to PCIe 5.0 by BIOS) and four SATA ports. Audio is handled by a Realtek ALC4082 with an ESS ES9219Q DAC/headphone amp and optical S/PDIF out. Ideal for flagship gaming, 4K/8K video editing, streaming and high-end workstation builds.
📍 Visit Us: Absolute Computer & Mobile, Megha Market, Sahidchowk, Narayangarh, Chitwan
📞 Call/WhatsApp: 985-5063618
📧 Email: absolutecomputerngt@gmail.com
| SKU ID |
SKU-20704
|
|---|---|
| Product Type | Motherboard |
| Price (incl. tax) | NPR 119,699 |
| Availability | In stock (7) |
| Brand | MSI |
| Model | MEG Z890 ACE |
| Chipset | Intel Z890 |
| CPU Socket | LGA 1851 |
| Processor Support | Intel Core Ultra Processors (Series 2) |
| Form Factor | ATX (243.84 × 304.8 mm) |
| Memory Type | DDR5 UDIMM (non-ECC, unbuffered) |
| Memory Slots | 4 (dual channel) |
| Maximum Memory Capacity | 256GB |
| Memory Speed | Up to 9200+ MT/s (OC); 6400–4800 MT/s (JEDEC); Intel XMP 3.0; CUDIMM supported |
| M.2 Slots | 5 |
| M.2 Interface | M.2_1: PCIe 5.0 x4 (CPU); M.2_2: PCIe 4.0 x4 (CPU); M.2_3: PCIe 4.0 x4; M.2_4: PCIe 4.0 x4 by default, PCIe 5.0 x4 via BIOS adjustment; M.2_5: PCIe 4.0 x4 / SATA |
| PCIe x16 Slot | 2× PCIe 5.0 (x16 / x8, CPU; x8+x8 or x8+x4+x4 via BIOS) + 1× PCIe 4.0 x4 (x16-size, chipset) |
| PCIe Expansion Slots | 3 PCIe slots in total (see above) |
| SATA Ports | 4× SATA 6Gb/s (RAID 0/1/5/10 for SATA and NVMe) |
| LAN | Marvell AQC113CS 10Gbps LAN |
| Wi-Fi | Intel Killer BE1750x Wi-Fi 7 (up to 5.8Gbps, 320MHz) |
| Bluetooth | Bluetooth 5.4 |
| USB Type-C | 2× Thunderbolt 4 Type-C, 2× USB 10Gbps Type-C (rear), 1× USB 20Gbps Type-C (front header) |

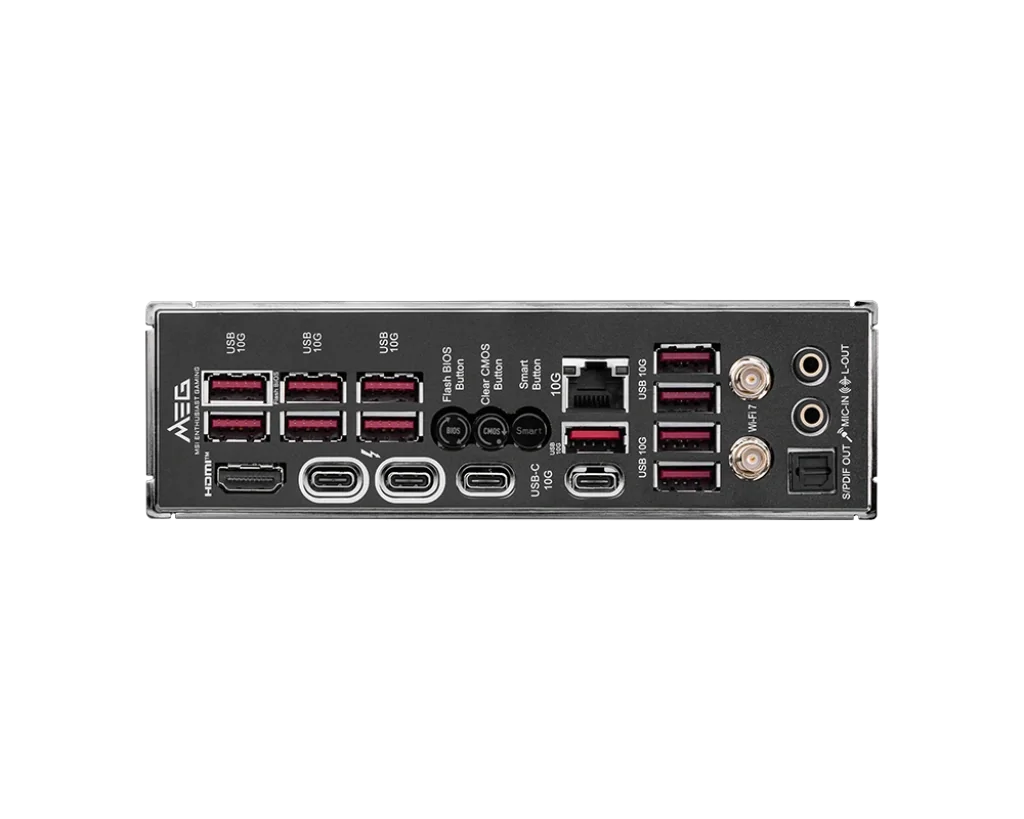

| USB Ports | Rear: 11× USB 10Gbps Type-A, 2× USB 10Gbps Type-C • Front headers: 4× USB 2.0, 4× USB 5Gbps Type-A, 1× USB 20Gbps Type-C |
| Thunderbolt | 2× Thunderbolt 4 (Type-C, up to 40Gbps, 15W charging, daisy-chain) |
| Video Output | 1× HDMI 2.1 FRL (up to 8K 60Hz), 2× Thunderbolt 4 Type-C DisplayPort (up to 8K 60Hz / 4K 120Hz) |
| Audio | Realtek ALC4082 + ESS ES9219Q DAC/HPA, 7.1-channel USB High-Performance Audio, S/PDIF out |
| Integrated Graphics Support | Yes — video outputs work with CPUs that have integrated graphics |
| Power Connector | 24-pin ATX + 2× CPU power + 8-pin PCIe supplemental power + PD_PWR1 (front Type-C quick charge) (24+2+1+1 DRPS, 110A SPS) |
| Cooling / Fan Headers | 1× CPU Fan, 2× Combo Fan (Pump/System), 5× System Fan, water-flow and thermal-sensor connectors |
| RGB / ARGB | 3× Addressable ARGB V2 (5V) + 1× RGB (12V) |
| Operating System Support | Windows 11 64-bit |
| Warranty | 1 Year |
