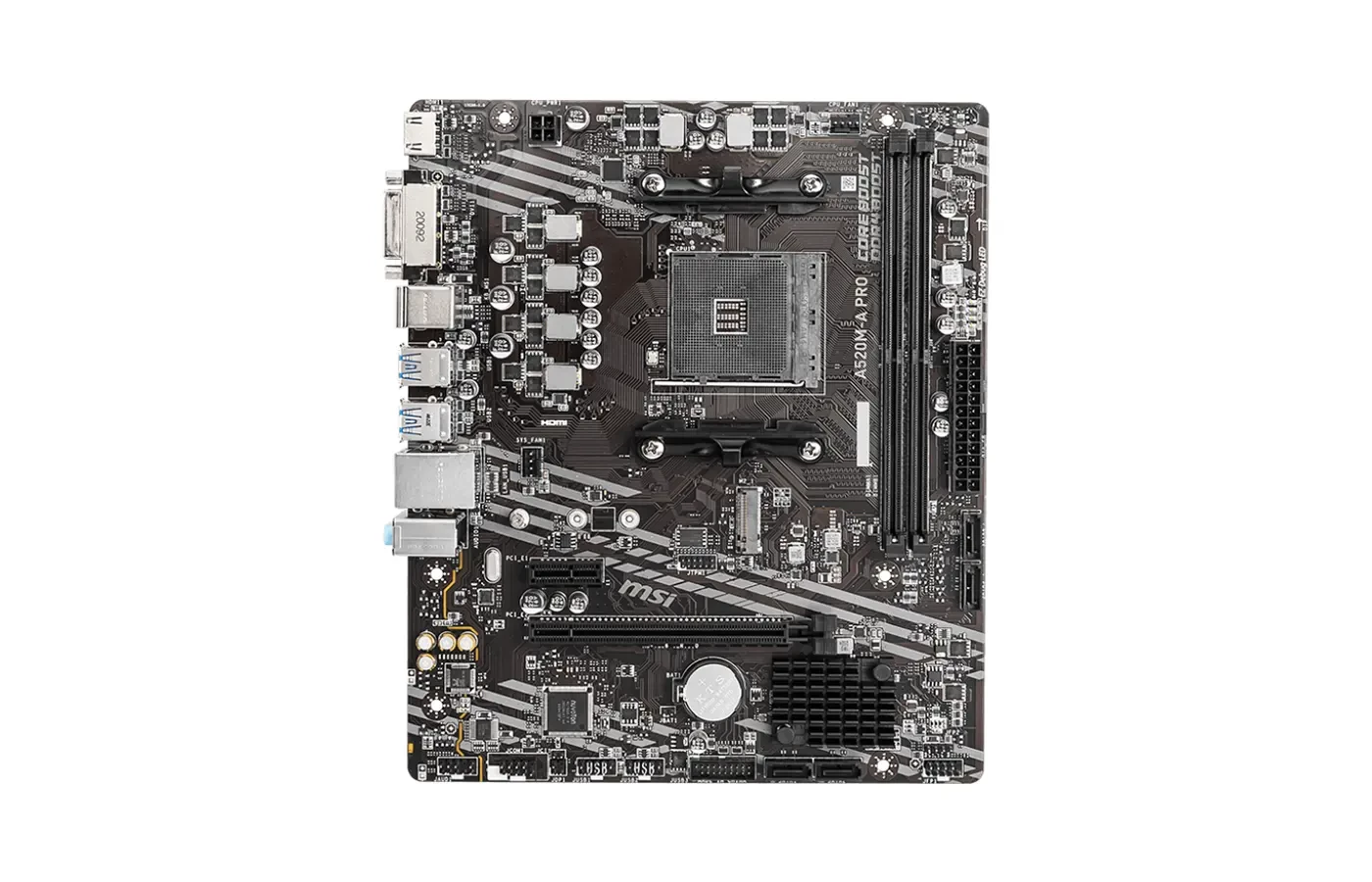

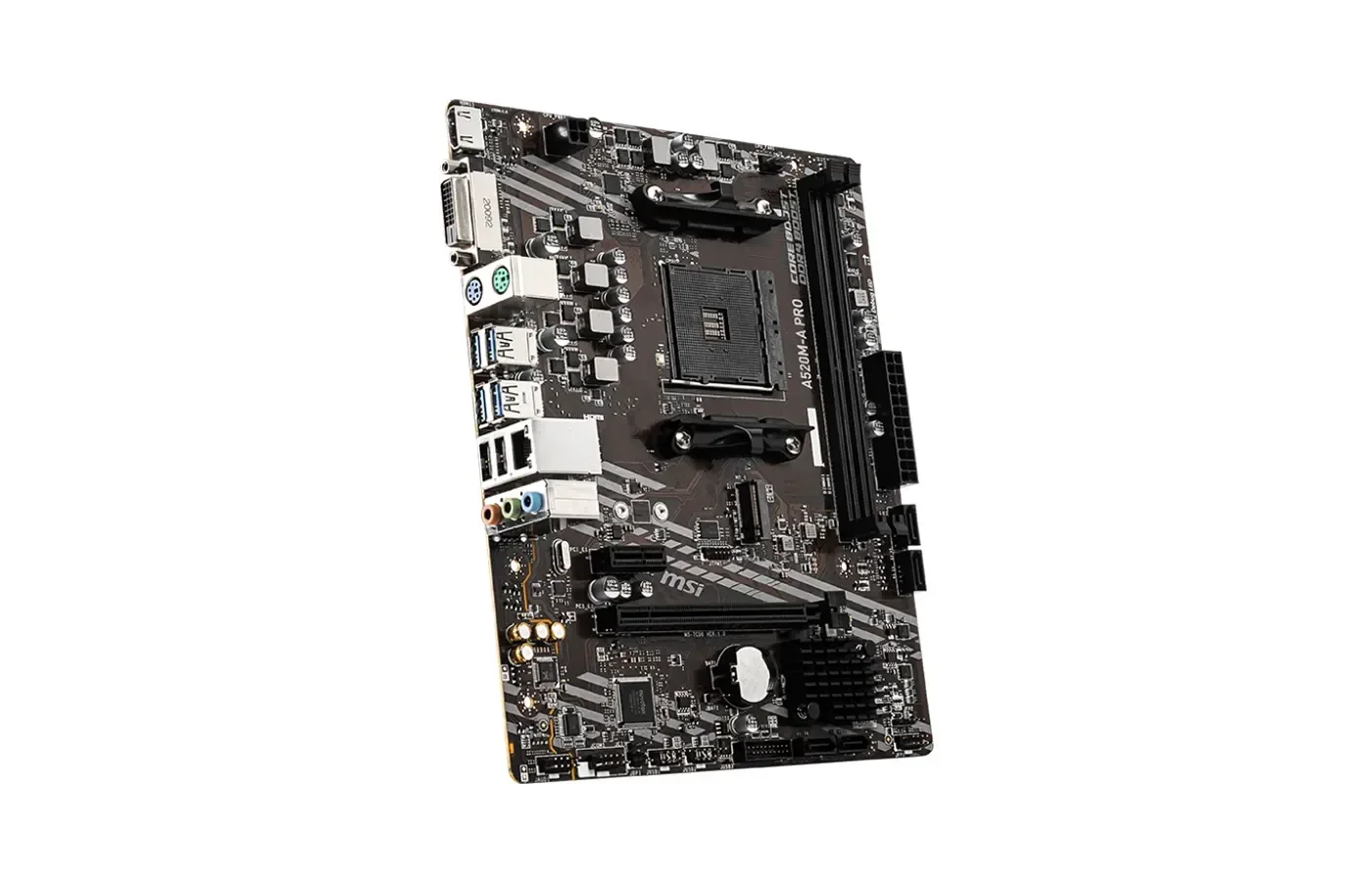

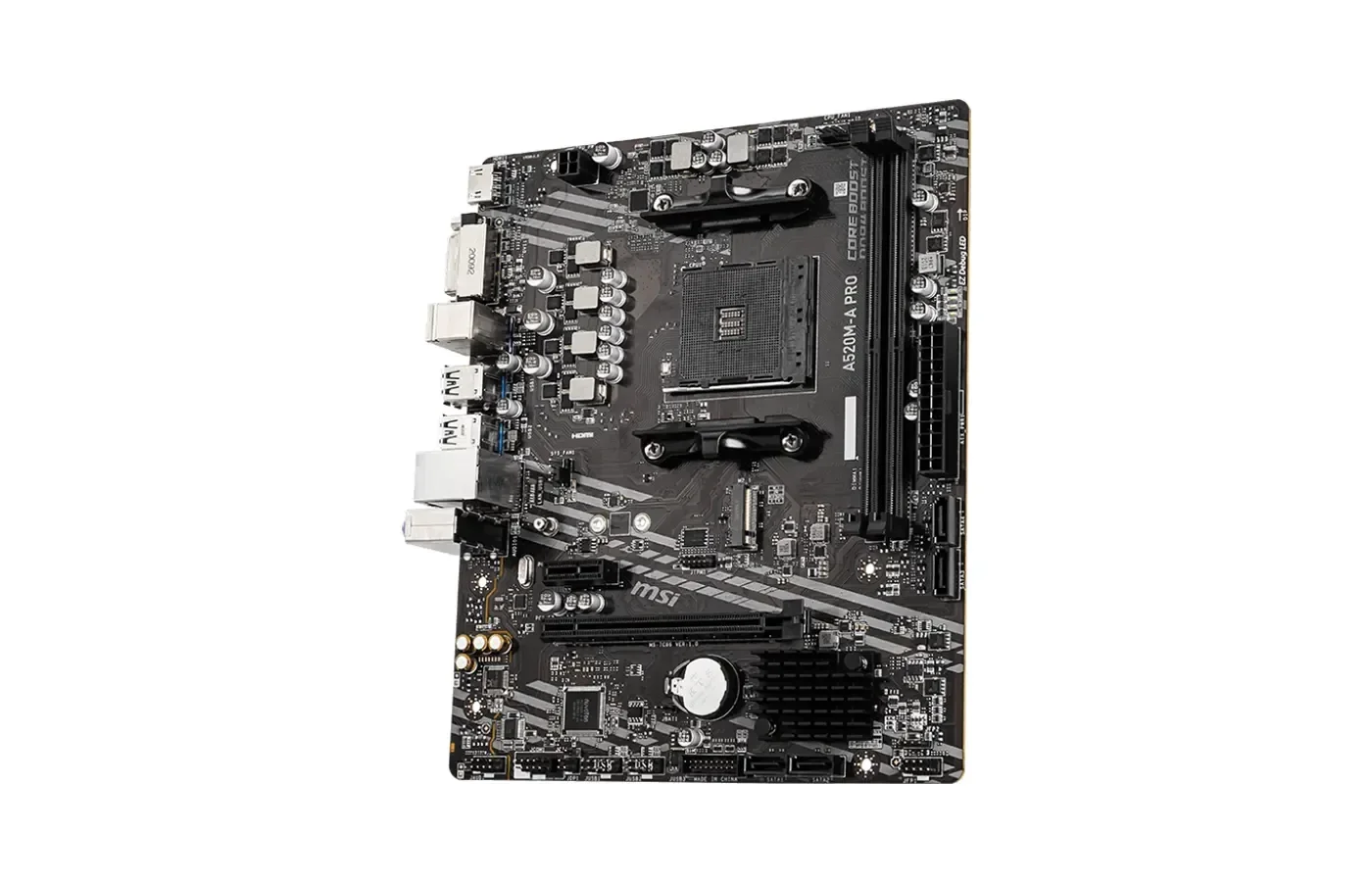

MSI A520M-A PRO Motherboard – AMD A520, AM4, DDR4, M.2 (mATX)
MSI
The MSI A520M-A PRO is a no-frills Micro-ATX board that makes a reliable base for budget AMD builds. It uses Socket AM4 and supports Ryzen 5000, 5000 G-Series, 4000 G-Series, 3000 and 3000 G-Series processors, so you can pair it with an affordable Ryzen CPU or APU.
Two DDR4 slots support up to 64GB, with A-XMP overclock support up to 4600+ MHz. You get a PCIe 3.0 x16 slot for a graphics card, a PCIe 3.0 x1 slot for add-in cards, one M.2 slot for an NVMe or SATA SSD, and four SATA ports for drives.
HDMI and DVI-D outputs let you use Ryzen G-Series CPUs with integrated graphics, and Realtek Gigabit LAN handles wired networking. Core Boost power design, fan control and EZ Debug LED support help with stability and troubleshooting.
Ideal for office computers, internet cafés, classrooms and budget home PCs. It has no onboard Wi-Fi or RGB.
📍 Visit Us: Absolute Computer & Mobile, Megha Market, Sahidchowk, Narayangarh, Chitwan
📞 Call/WhatsApp: 985-5063618
📧 Email: absolutecomputerngt@gmail.com
| SKU ID |
SKU-20709
|
|---|---|
| Product Type | Motherboard |
| Price (incl. tax) | NPR 10,199 |
| Availability | In stock (5) |
| Brand | MSI |
| Model | A520M-A PRO |
| Chipset | AMD A520 |
| CPU Socket | Socket AM4 |
| Processor Support | AMD Ryzen 5000, 5000 G-Series, 4000 G-Series, 3000 and 3000 G-Series processors |
| Form Factor | Micro-ATX |
| Memory Type | DDR4 |
| Memory Slots | 2 (dual channel) |
| Maximum Memory Capacity | 64GB |
| Memory Speed | JEDEC 1866–3200 MHz; A-XMP OC up to 4600+ MHz |
| M.2 Slots | 1 |
| M.2 Interface | PCIe 3.0 x4 / SATA (2242/2260/2280) |
| PCIe x16 Slot | 1× PCIe 3.0 x16 |
| PCIe Expansion Slots | 1× PCIe 3.0 x1 |
| SATA Ports | 4× SATA 6Gb/s |
| LAN | Realtek RTL8111H Gigabit LAN (1Gbps) |
| Wi-Fi | N/A |
| Bluetooth | N/A |
| USB Type-C | N/A |
| USB Ports | Rear: 2× USB 3.2 Gen 1 (5Gbps) Type-A, 2× USB 2.0, PS/2 keyboard/mouse • Additional USB 2.0 / USB 3.2 Gen 1 via front headers |
| Thunderbolt | N/A |
| Video Output | HDMI, DVI-D |
| Audio | Realtek ALC892/ALC897, 7.1-channel HD Audio |
| Integrated Graphics Support | Yes — video outputs work with Ryzen G-Series CPUs |
| Power Connector | 24-pin ATX + 4-pin CPU |
| Cooling / Fan Headers | 1× CPU Fan, 1× System Fan |
| RGB / ARGB | N/A (no RGB/ARGB headers) |
| Operating System Support | Windows 11 / Windows 10 64-bit (check with MSI for current support list) |
| Warranty | 1 Year |
