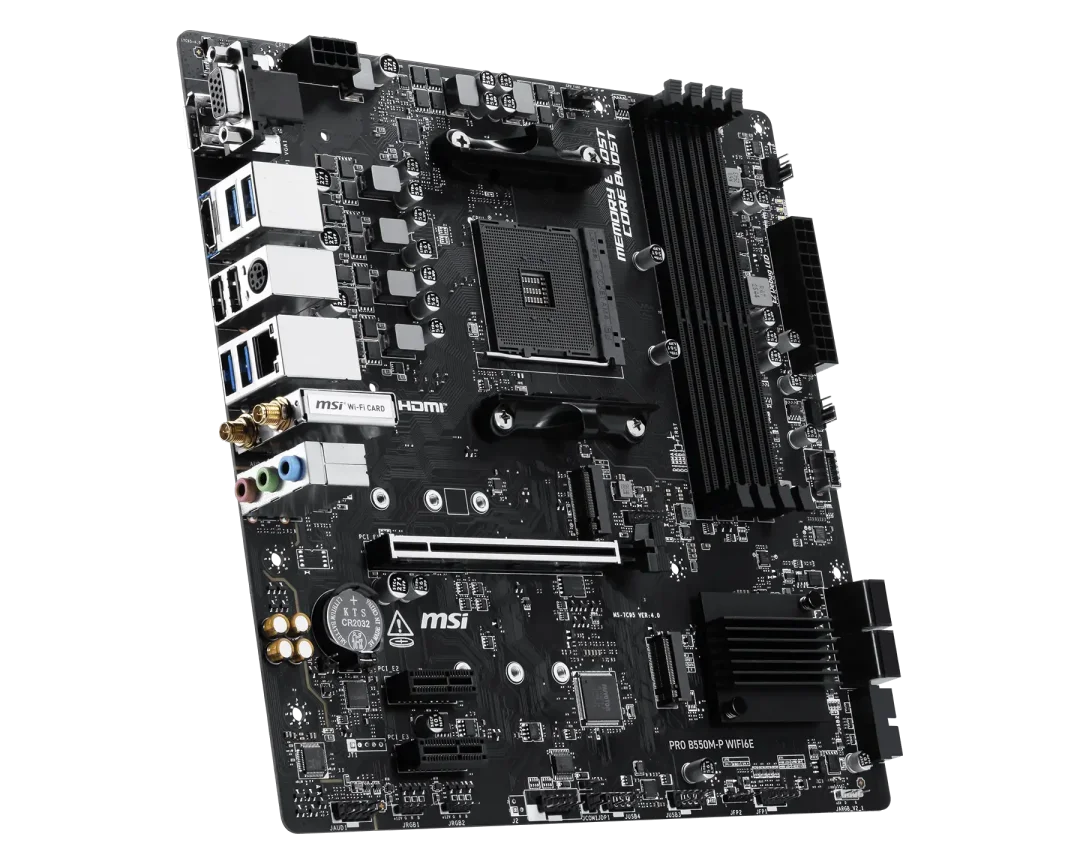

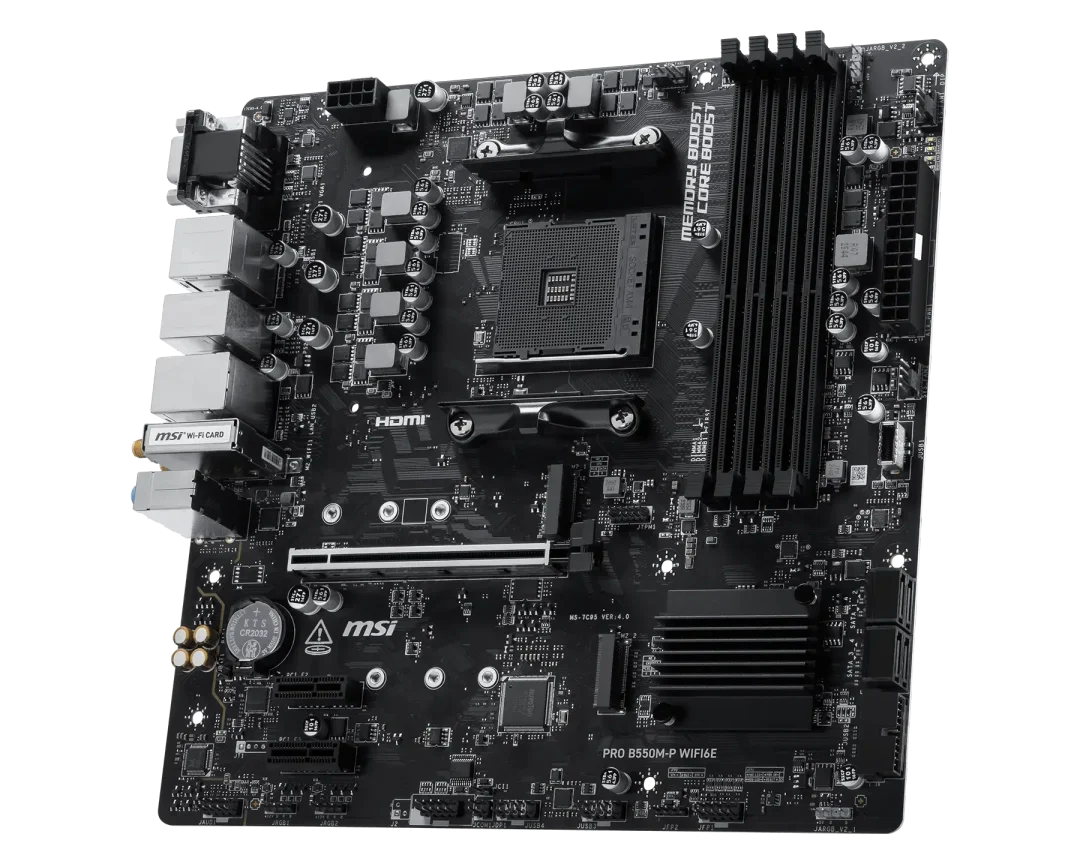

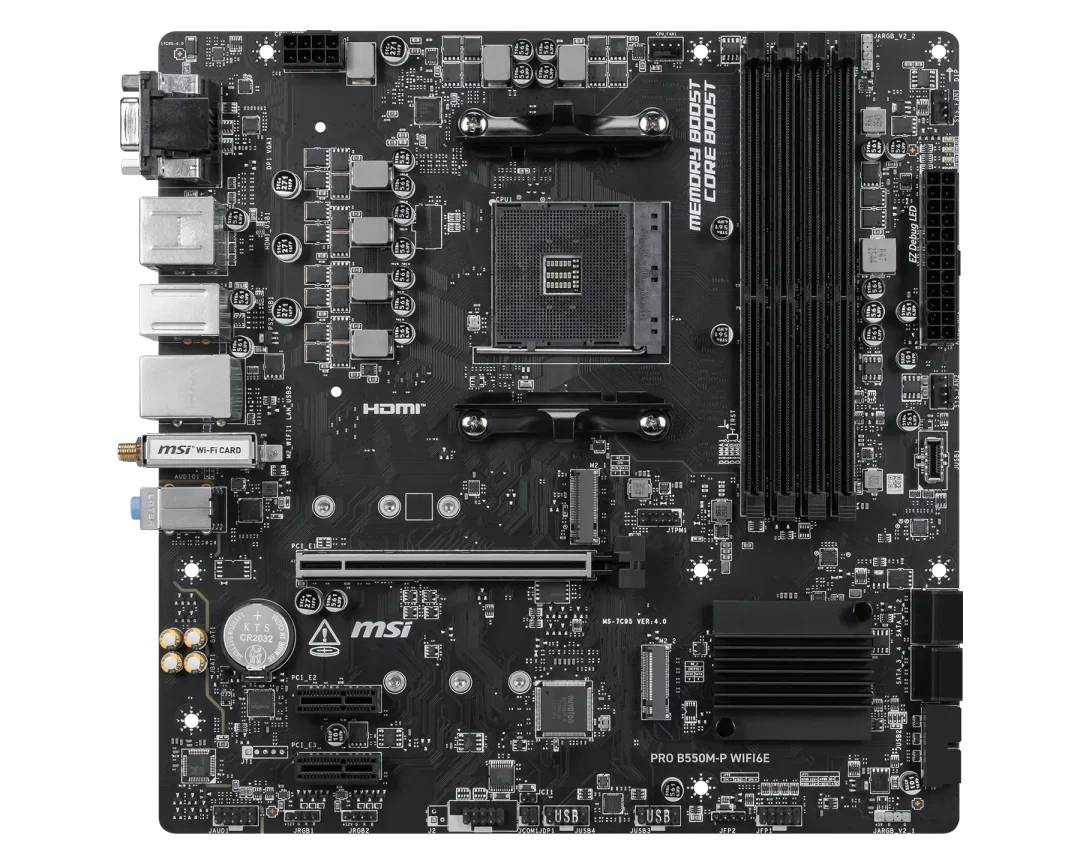

MSI PRO B550M-P WiFi 6E Motherboard – AMD B550, AM4, DDR4, Dual M.2
MSI
The MSI PRO B550M-P WIFI6E is a Micro-ATX board that brings modern wireless to the AM4 platform. It supports Ryzen 5000, 3000 and 4000 G-Series processors (note: not Ryzen 5 3400G or Ryzen 3 3200G), making it a good match for an upgrade or a value build.
Wi-Fi 6E and Bluetooth 5.3 are built in, so you can skip the adapter. Four DDR4 slots support up to 128GB with A-XMP overclocking up to 4400+ MHz. Storage includes one PCIe 4.0 x4 M.2 slot and one PCIe 3.0 x4 M.2 slot, plus four SATA ports, and the PCIe 4.0 x16 slot uses Steel Armor to protect your graphics card.
Seven USB 5Gbps ports (including one Type-C) provide plenty of connectivity, and HDMI 2.1, DisplayPort 1.4 and VGA outputs support Ryzen CPUs with integrated graphics. Frozr AI Cooling and EZ Debug LEDs add smarter cooling and easier troubleshooting.
A well-rounded pick for home, office and mid-range gaming PCs on AM4.
📍 Visit Us: Absolute Computer & Mobile, Megha Market, Sahidchowk, Narayangarh, Chitwan
📞 Call/WhatsApp: 985-5063618
📧 Email: absolutecomputerngt@gmail.com
| SKU ID |
SKU-20711
|
|---|---|
| Product Type | Motherboard |
| Price (incl. tax) | NPR 19,399 |
| Availability | In stock (5) |
| Brand | MSI |
| Model | PRO B550M-P WIFI6E |
| Chipset | AMD B550 |
| CPU Socket | Socket AM4 |
| Processor Support | AMD Ryzen 5000 & 3000 Series and Ryzen 4000 G-Series desktop processors (not compatible with Ryzen 5 3400G and Ryzen 3 3200G) |
| Form Factor | Micro-ATX |
| Memory Type | DDR4 (non-ECC, unbuffered) |
| Memory Slots | 4 (dual channel) |
| Maximum Memory Capacity | 128GB |
| Memory Speed | A-XMP OC up to 4400+ MHz (2667–4400+ MHz profiles) |
| M.2 Slots | 2 |
| M.2 Interface | 1× PCIe 4.0 x4 (64Gbps), 1× PCIe 3.0 x4 (32Gbps) |
| PCIe x16 Slot | 1× PCIe 4.0 x16 (Steel Armor) |
| PCIe Expansion Slots | 2× PCIe 3.0 x1 |
| SATA Ports | 4× SATA 6Gb/s |
| LAN | Realtek RTL8111H Gigabit LAN |
| Wi-Fi | Wi-Fi 6E (pre-installed module, up to 2.4Gbps) |
| Bluetooth | Bluetooth 5.3 |
| USB Type-C | 1× USB 5Gbps Type-C |
| USB Ports | 7× USB 5Gbps (6 Type-A + 1 Type-C), 6× USB 2.0 (rear + front headers combined) |
| Thunderbolt | N/A |

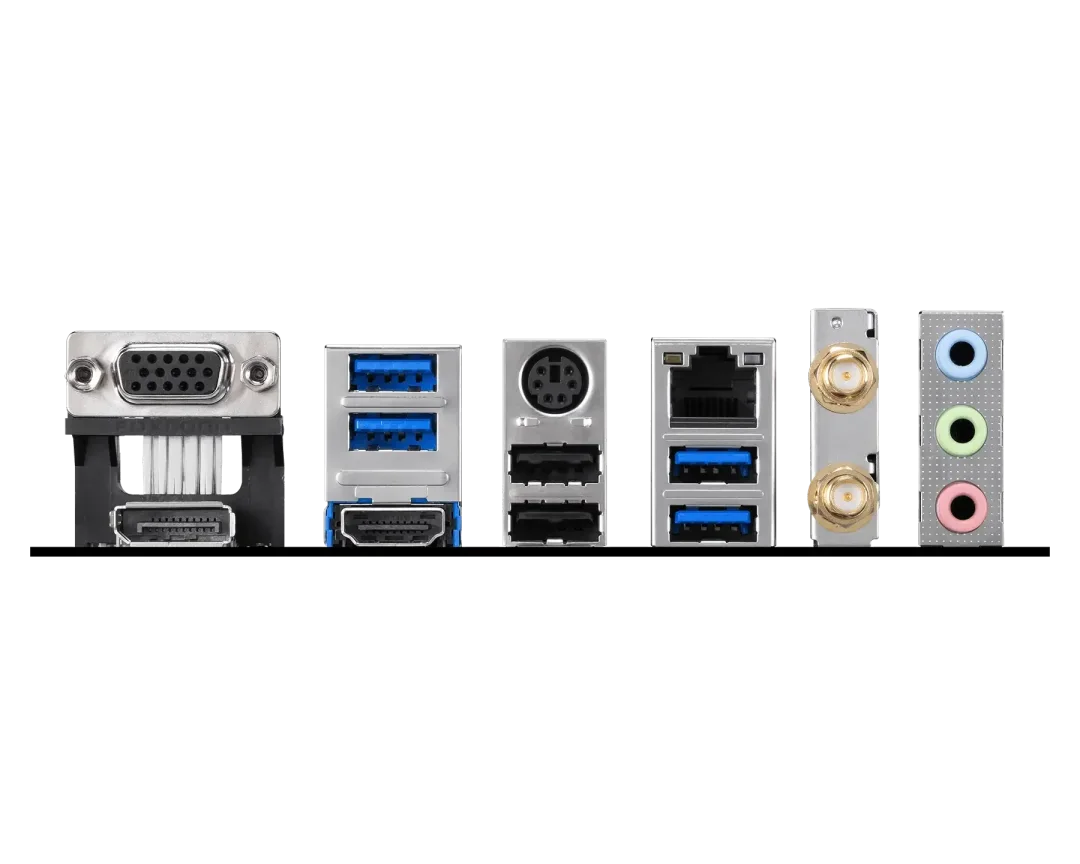

| Video Output | HDMI 2.1 (4K 60Hz), DisplayPort 1.4, VGA |
| Audio | Realtek 7.1-channel HD Audio with Audio Boost |
| Integrated Graphics Support | Yes — video outputs work with Ryzen G-Series CPUs |
| Power Connector | 24-pin ATX + CPU power connector (see manual) |
| Cooling / Fan Headers | CPU Fan + System Fan headers (exact count: see manual); Frozr AI Cooling |
| RGB / ARGB | See manual |
| Operating System Support | Windows 11 64-bit |
| Warranty | 1 Year |
